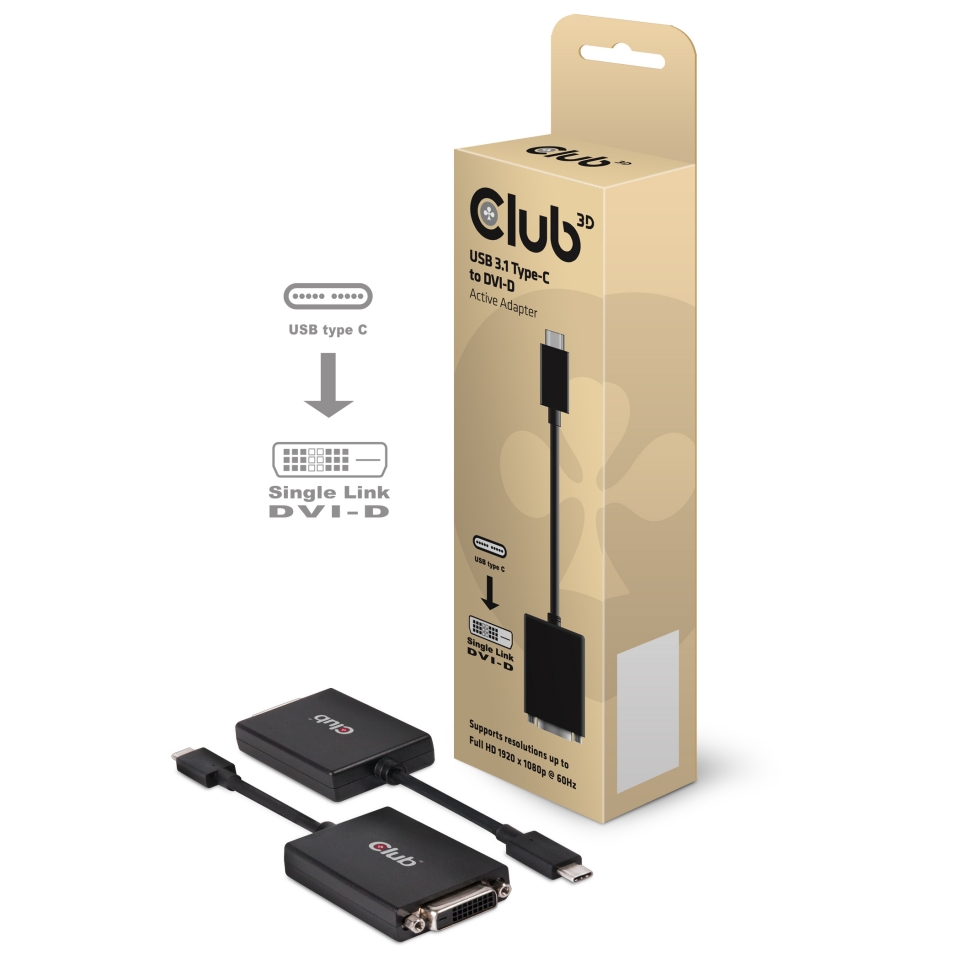

USB 3.1 Type C to DVI-D Active Adapter
USB 3.1 Type C to DVI-D Active Adapter
Enlarge

USB 3.1 Type C to DVI-D Active Adapter

CAC-1508 The Club 3D is an Active DVI signal converter. The USB 3.1 Type-C to DVI-D Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to a DVI-D enabled High Definition Monitor, Television or Projector. The DVI-D adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks.

Supports up to Full HD 1920x1080p @ 60Hz
The USB 3.1 Type-C to DVI-D adapter supports resolutions up to 1920x1080p @ 60Hz with 8-bit color mode for a clear, sharp picture. The support for 60 frames per second provides smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a High Resolution monitor or TV. Does not support Dual Mode DisplayPort™ (DP++)

Compatible with all Operating Systems
The USB 3.1 Type-C to DVI-D Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS. Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.

Related products
USB Type-C to HDMI™ 1.4  Active Adapter
USB Type-C to HDMI™ 1.4 Active Adapter
USB 3.1 Type C to HDMI™ 2.0  UHD Active Adapter
USB 3.1 Type C to HDMI™ 2.0 UHD Active Adapter
USB 3.1 Type C to VGA Active Adapter
USB 3.1 Type C to VGA Active Adapter

Specifications

Connector 1
USB Type-C Male
Connector 2
DVI-D Female
Model
Product Name: USB 3.1 Type-C to DVI-D Active Adapter
Product Series: Accessories
Weight: 56 gr
Cable length: 180 mm
Item Code: CAC-1508
EAN Code: 8719214470463
UPC Code: 841615100583
Features
Reversible USB Type-C connector
Compliant to VESA DisplayPort™ 1.2a Alt Mode Standard
Compliant to HDCP 1.3 Specification
Supports full link training, fast link training and no link training
Supports resolutions up to 1920 x 1080p @ 60Hz reduced blanking
Supports 3D Video Streaming up to 1080p Full HD
Powered by USB Port (no external power needed)
Compatibility
Supports AMD, Nvidia® and Intel® HD/ Iris™ graphics solutions
Requires DisplayPort™ Alt Mode
Operating Systems
Microsoft Windows
Apple OS X
Google Chrome OS
In the Box
CAC-1508 USB 3.1 Type-C to DVI-D Active Adapter

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
