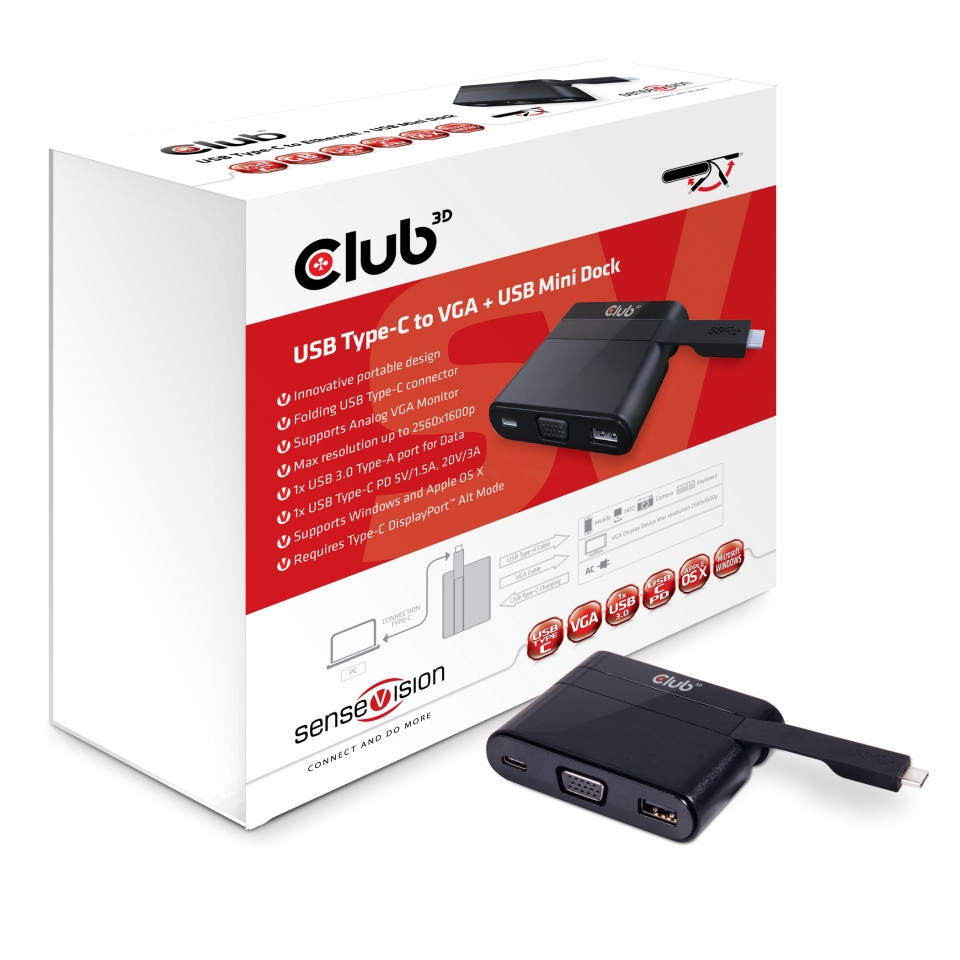

USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock
CSV-1532 The SenseVision USB Type C to VGA + USB 3.0 + USB Type C Charging Mini Dock is a portable and indispensable tool for your USB Type-C enabled laptop or Ultrabook featuring DisplayPort™ Alternate Mode. Add an analog VGA monitor with up to WQXGA 2560x1600p resolution through the D-Sub output while the USB 3.0 Type-A port connects your USB Sticks, Peripherals and HDD’s.
It also offers a Type-C PD input which charges your device with up to 60Watt at the same time. Supports Microsoft Windows® and Apple OS X, requires DisplayPort™ Alt Mode.
Check out the downloads tab for more information
Specifications
Model |
Product Name: USB 3.1 Type-C to VGA and USB Mini Docking Station |
Product Series: SenseVision |
Weight: 51 gr |
Connector length: 55mm |
Item Code: CSV-1532 |
EAN Code: 8719214470487 |
UPC Code: 841615100613 |
Interface |
USB 3.0 Type-C male x 1 |
Output Configuration |
D-Sub VGA female x 1 |
USB 3.0 Type-A female x1 (for Data) |
USB 3.0 Type-C female x1 (for Charging) |
In the package |
SenseVision USB 3.0 Type C to Ethernet and USB Mini Docking Station |
Quick install guide |
Features: |
• Innovative Portable Design |
• Folding USB Type C Connector |
• Supports analog VGA monitor |
• Supports up to 270MHz video pixel clock |
• Supports up to WQXGA resolution (2560x1600p) |
• 1x USB 3.0 (3.1 Gen1) Type-A port for Data (max 5Gbps) |
• 1x USB Type C PD port (5V/ 1.5A, 20V/3A) |
• Requires Type C DisplayPort™ Alt Mode |
The minimum requirements for the PC are: |
CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock. |
GPU: AMD, Intel or Nvidia |
RAM: 1GB or higher |
USB port: Type C must support DisplayPort™ Alt Mode |
30MB of available disk space |
Supported Operating Systems: |
Windows 7 (32 & 64 Bit) |
Windows 8.1 (32 & 64 Bit) |
Windows 10 (32 & 64 Bit) |
Apple OS X |
Technology
USB
Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed + SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
