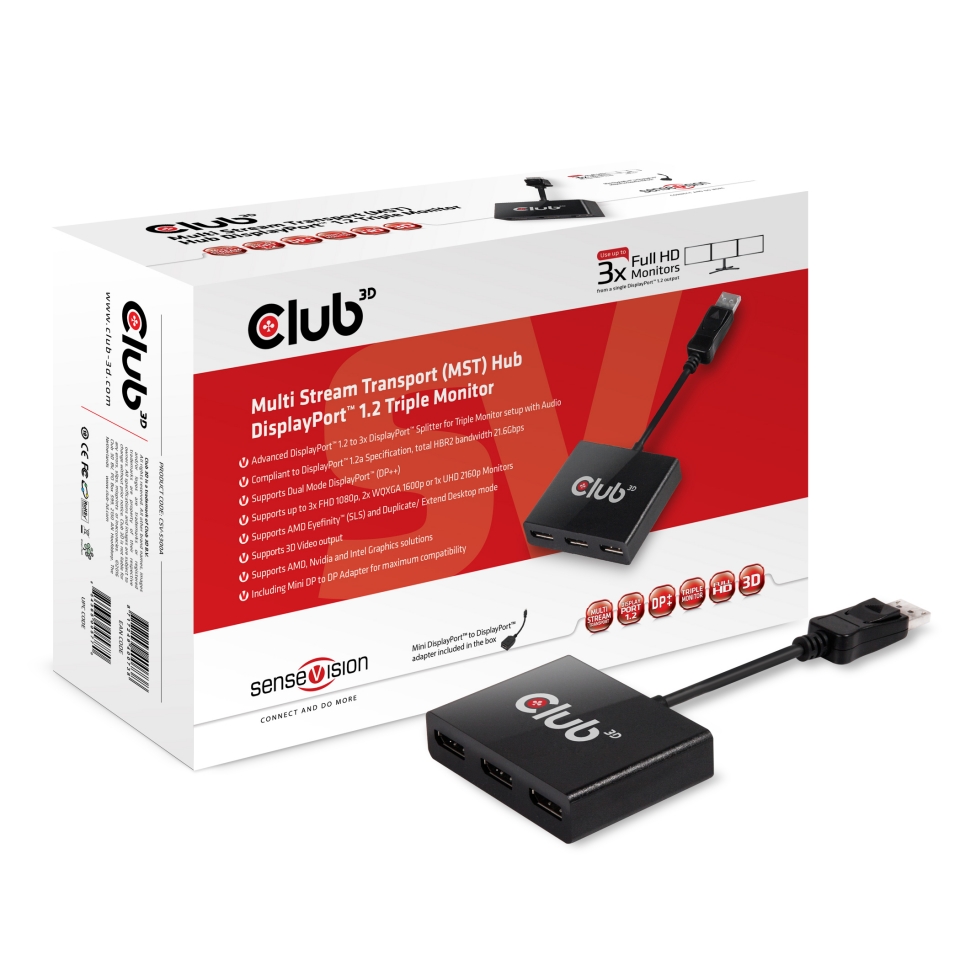

Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor
Enlarge

Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor

CSV-5300A The Club3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens. The Club3D MST Hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs, but it enbales the optimal use of it.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

AMD Eyefinity™
Enjoy the ultimate immersive gaming experience. AMD Radeon™ graphics cards can support up to 6 displays by using MST hub(s) showing each monitor independently or using the Single Large Surface (SLS) mode.

Give your device more Displays
Get more from your Ultrabook, Microsoft Surface Pro* tablet or Intel NUC with (mini) DisplayPort™ 1.2 output. The MST Hub is affordable, flexible and meets the demands of any power user who requires multiple displays to get their work done. A Mini DP to DP adapter is included for maximum compatibility with Mini DP enabled platforms like the Surface Pro and NUC product families.
Note: Some Notebooks and Tablets have Integrated Graphics Chips which do not support more
 than 3 screens in total. Please check your device specifications for further information.

DisplayPort™ Dual Mode
Also known as DP++, is a feature which enables the output of single-link DVI and HDMI™ signals from the DP output. Passive adapters should be used to convert to HDMI and/or DVI connectors. This means that, although MST Hubs use DisplayPort™ technology, you are not required to use DisplayPort™ monitors. MST Hubs give you the freedom to use any combination of monitors and interfaces you want.

Check out the downloads tab for more information

Related products
SenseVision MST Hub USB 3.1 Gen1 Type C to HDMI™ 1.4 Dual Monitor
SenseVision MST Hub USB 3.1 Gen1 Type C to HDMI™ 1.4 Dual Monitor
SenseVision USB A to DisplayPort™ 1.2 Dual Monitor 4K 60Hz
SenseVision USB A to DisplayPort™ 1.2 Dual Monitor 4K 60Hz
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Dual Monitor

Specifications

Model
Product Name: Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor
Product Series: Video Splitter
Item Code: CSV-5300A
EAN Code: 8717249400738
UPC code: 854365005770
Interface
DisplayPort 1.2a
Voltage
Input: 5V+/- 10%
Output: 3.3V +/- 10%
Output Configuration
DisplayPort++ x 3
In the package
Club 3D Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Triple Monitor
Instruction manual
Power Supply unit
Mini-Displayport to Displayport Adapter (CAC-1110)
Features:
• Compliant with: DisplayPort™ v1.2a, DisplayPort™ v1.1a, VESA DDM Standard, HDCP V2.0,DisplayId,and EDID V1.4
• Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
• Outputs support DisplayPort Dual Mode (DP++)
• Supported output resolutions :
- for Dual Monitor setup: up to 2x 2560X1600p @ 60Hz
- for Tripple Monitor setup: up to 3x 1920x1080p @ 60
• Input pixel data depth 6/8/10/12 bits and supports output pixel format RGB444
• Supports Advanced Wide Eye™ SerDes technology enables high Jitter performance
• Supports Adaptive Sync technology and AMD Eyefinity
• Works with AMD, Nvidia and Intel Graphics solutions
• Including CAC-1110 MiniDP-to-DP adapter for maxmum compatibility
• Compatible with Microsoft Surface Pro 2, 3, 4, Ultrabooks and Intel NUC
• Functionality may be limited by device specification and operating system
Note: Some Notebooks and Tablets have Integrated Graphics Chips which do not support more
 than 3 screens in total. Please check your device specifications for further information.
OS Support:
Microsoft Windows: 10 / 8.1
