Mini DisplayPort to VGA Active Adapter
Mini DisplayPort to VGA Active Adapter
Enlarge

Mini DisplayPort to VGA Active Adapter

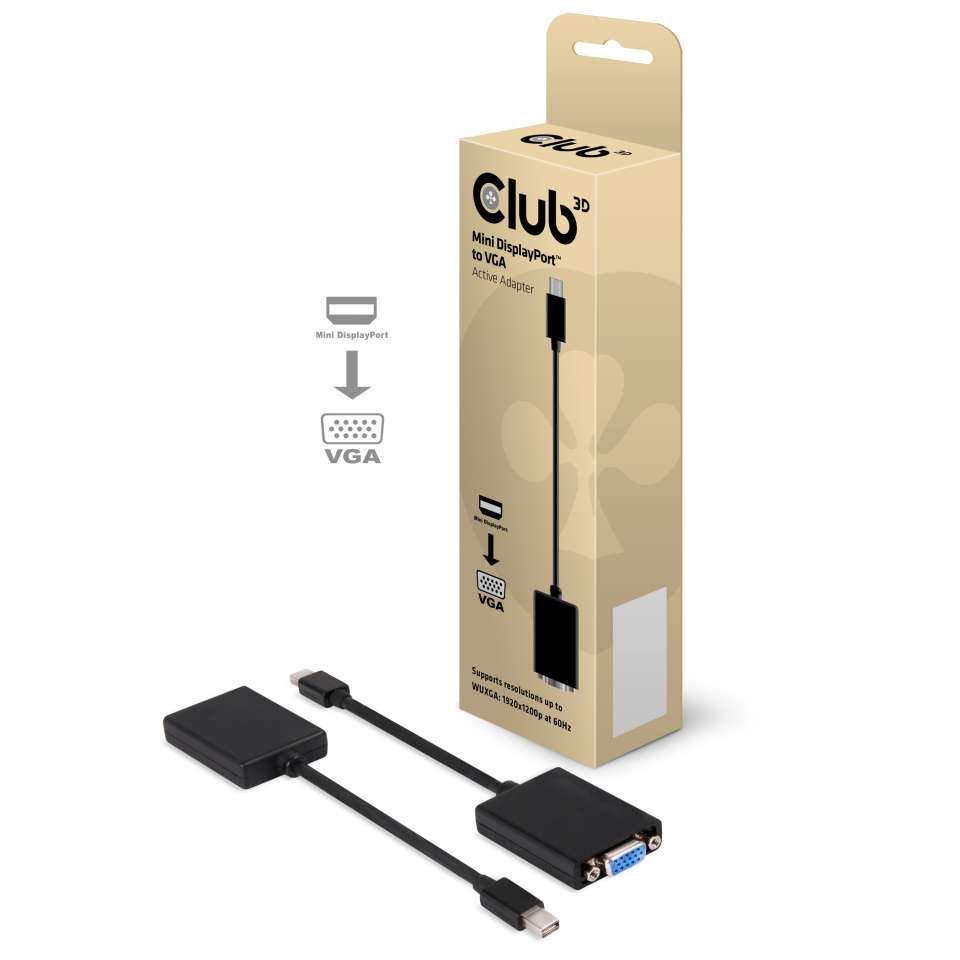

CAC-1103 The Club 3D is an active Mini DisplayPort™ to VGA signal converter. It accepts DisplayPort™ input from Mini DisplayPort™ enabled Desktop or Laptop and converts to a legacy analog VGA output allowing the use of analog VGA Televisions, Monitors and Projectors. The adapter offers hassle free plug and play functionality and is powered by the mDP output.

The Mini DisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and power. The VGA output is compliant to VSIS standard and supports up to WUXGA RB timings.

Supports resolutions up to WUXGA 1920x1200p @ 60Hz.
The adapter works with AMD, Nvidia and Intel Graphic Solutions and supports AMD Eyefinity™.

Related products
Mini DisplayPort 1.1 to HDMI 1.4 VR ready Passive Adapter
Mini DisplayPort 1.1 to HDMI 1.4 VR ready Passive Adapter
MiniDisplayPort to DisplayPort 1.2 Cable M/M 2m/6.56ft
MiniDisplayPort to DisplayPort 1.2 Cable M/M 2m/6.56ft
Mini DisplayPort 1.2 to HDMI 2.0 Active Adapter
Mini DisplayPort 1.2 to HDMI 2.0 Active Adapter

Specifications

Connector 1: Mini DisplayPort™ Male
Connector 2: VGA Female
Model
Product Name: Mini DisplayPort™ to VGA Active Adapter
Product Series: Accessories
Weight: 33 gr
Cable length: 150 mm
Item Code: CAC-1103
EAN Code:8719214470715
UPC Code: 841615100897
Features
• Mini DisplayPort™ 1.1a compliant receiver offering 5.4Gbps bandwidth over 2 lanes
• Integrated tripler 10-bit,162MHz video DAC for analog VGA signal output
• EDID and MCCS pass-through from PC source to display
• Supports resolutions up to WUXGA 1920x1200p at 60Hz
• Supports HDTV formats up to 1920x1080p Full HD
• Powered by the Mini DisplayPort™ output
• Automatic sink detection
• Support for multi-monitor setups and AMD Eyefinity™
• Compatible with AMD, Nvidia and Intel Graphics solutions
Compatibility
Supports AMD, Nvidia® and Intel® graphics solutions
Operating Systems
Windows
Apple OS X
In the Box
CAC-1103 Mini DisplayPort™ to VGA Active Adapter

Technology

DISPLAYPORT



Read more

PDF files

High Resolution Images

Driver downloads

  • No Driver downloads found
