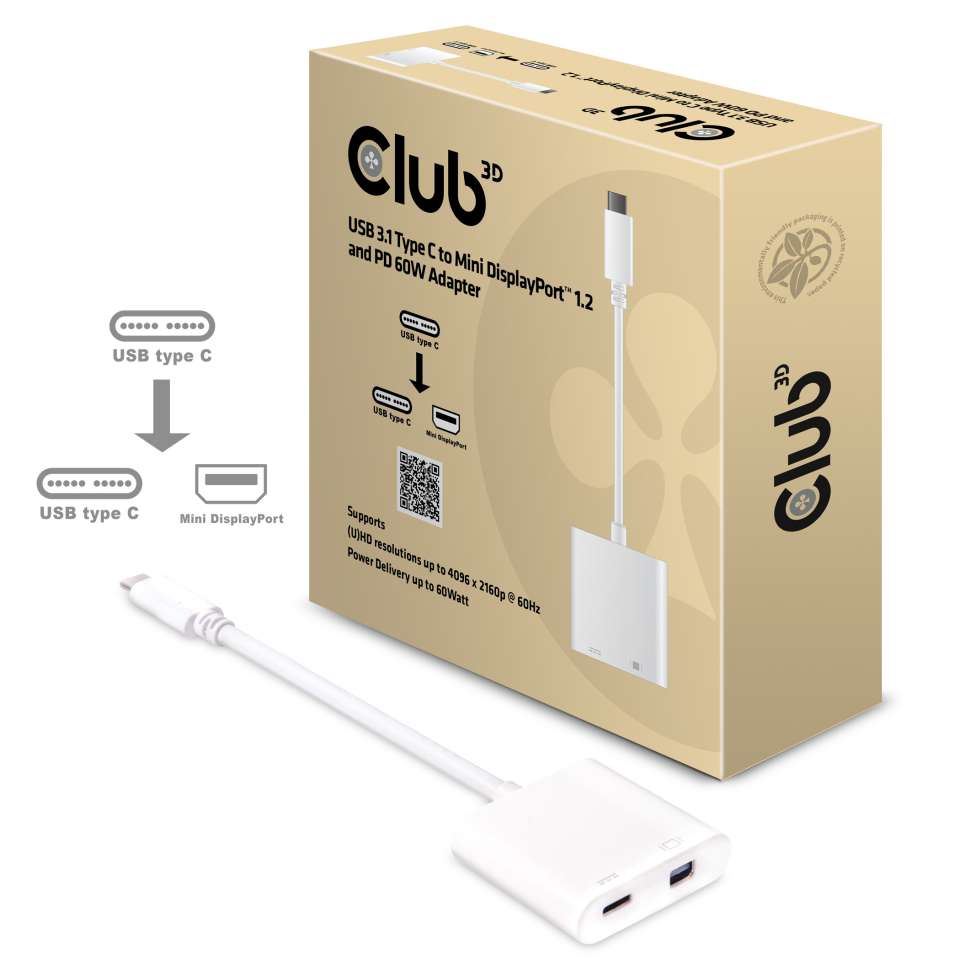

USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60 W Adapter
CAC-1509 - The Club 3D CAC-1509 is a DisplayPort™ signal converter. The USB 3.1 Type C to Mini DisplayPort 1.4(When source supports it) and PD 60W Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to a Mini DisplayPort™ 1.4 enabled Ultra High Definition Monitor, Television or Projector. The DisplayPort™ adapter is compact and highly portable. Powered by the USB C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks. This signal converter works also with DP1.2.
Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type C to Mini DisplayPort™ 1.4(When source supports it)and PD 60W Adapter supports UHD resolutions up to 4K UHD @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video.
Power
The USB C female port can charge the host computer up to 60W (20V/3A).
Compatibility
It is compatible with new Apple Macbook Pro, Macbook, new Google Chromebook Pixel and other USB-C supported devices with support for DisplayPort™ Alternate Mode over USB C.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
 and PD 60W Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to a Mini DisplayPort™ 1.4 enabled Ultra High Definition Monitor, Television or Projector. The DisplayPort™ adapter is compact and highly portable. Powered by the USB C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks. This signal converter works also with DP1.2.<br />
<br />
<b>Supports up to 4K UHD Resolution at 60Hz.</b><br />
The USB 3.1 Type C to Mini DisplayPort™ 1.4(When source supports it)and PD 60W Adapter supports UHD resolutions up to 4K UHD @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video.<br />
<br />
<b>Power</b><br />
The USB C female port can charge the host computer up to 60W (20V/3A).<br />
<br />
<b>Compatibility</b><br />
It is compatible with new Apple Macbook Pro, Macbook, new Google Chromebook Pixel and other USB-C supported devices with support for DisplayPort™ Alternate Mode over USB C.<br />
<br />
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.){kind=link}
Specifications
| Model |
| Product Name: USB 3.1 Type C to Mini DisplayPort 1.2 and PD 60W Adapter |
| Product Series: Adapter |
| Itemcode: CAC-1509 |
| EAN code: 8719214470883 |
| UPC code: 841615101078 |
| Features: |
| • Reversible USB Type-C connector |
| • Compliant to VESA DisplayPort™ 1.4 Alternate Mode |
| • Supports UHD resolutions up to 4096x2160p @ 60Hz |
| • Supports 3D Video formats up to 1920x1080p @ 120Hz |
| • Supports content protection, HDCP 2.2 |
| • USB Type C Female Charging Port, Upstream Power Delivery Up to 60W (20V/3A) |
| Compatibility |
| Supports AMD HD 6xxx, Nvidia® Maxwell and Intel® HD/ Iris™ graphics solutions and newer. |
| Requires DisplayPort™ Alt Mode support from the source system. |
| Input: |
| • USB type C male |
| Output: |
| • Mini DisplayPort™ 1.4 female |
| • USB Type C for Power Delivery |
| OS Support: |
| Microsoft Windows |
| Apple OS X |
| Google Chrome OS |
| Other info: |
| • Packing Size: 145 x 145 x 45 mm. |
| • Packing Weight: 6 gr. |
| • Adapter Weight: 23gr. |
| • Adapter height: 11 mm |
| • Adapter width: 42 mm |
| • Adapter length: 183 mm |
| • Meets ROHS, FCC, and CE EMI requirement |
| In the box: |
| Club3D USB 3.1 Type C to Mini DisplayPort 1.4 and PD 60W Adapter |
