DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter
DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter
Enlarge

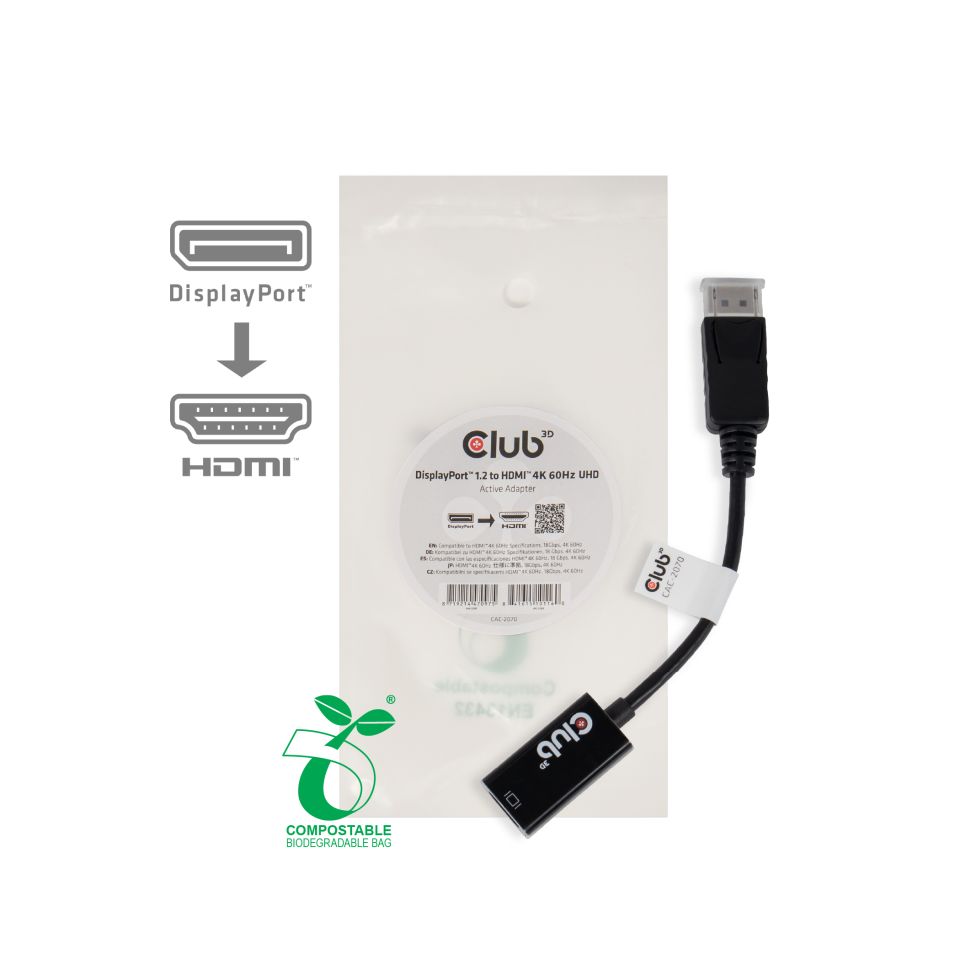

DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter

CAC-2070 - The Club 3D CAC-2070 is an active HDMI™ 2.0 signal converter. The DisplayPort™ 1.2 to HDMI™2.0 4K 60Hz UHD Active Adapter is the easiest solution for connecting your DisplayPort™ 1.2 Game PC or Laptop to an HDMI™ enabled 4K UHD Television, monitor or Projector. The adapter is compliant to HDMI™ 2.0 specification allowing for 6Gbps TMDS through-put per channel. The interface in the adapter has three lanes for HDMI data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps.

Supports up to 4K UHD Resolution at 60Hz.
The DisplayPort™ 1.2 to HDMI™ 2.0 4K60Hz UHD Active Adapter supports UHD resolutions of up to 4K UHD 4096x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your DisplayPort™ 1.2 enabled device in Ultra High Resolution. Supporting up to 8 channels of audio,the adapter provides Ultra High Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/60 gameplay but lacks a native HDMI™ 2.0 output in their system configuration.

Related products
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.8 ft
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.8 ft
Premium High Speed HDMI 2.0 UHD Extension Cable M/F 3m/9.84ft
Premium High Speed HDMI 2.0 UHD Extension Cable M/F 3m/9.84ft
Premium High Speed HDMI 2.0 4K60Hz UHD Cable 1m/3.28ft
Premium High Speed HDMI 2.0 4K60Hz UHD Cable 1m/3.28ft

Specifications

Model:
Product Name: DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter
Product Series: Adapters
Itemcode: CAC-2070
EAN code: 8719214470975
UPC code: 841615101160
Features:
• Compliant to DisplayPort™ Specification 1.2 for 1.62Gbps,2.7Gbps and 5.4Gbps per lane. Effective (video) bandwidth 17.28Gbps
• Compliant to HDMI™ 2.0 Specification, data rate up to 6Gbps per channel total throughput 18Gbps
• Supports full link training and no link training
• Repeater for HDCP 1.3 and HDCP 2.2
• Supports 24-bit color and 4:4:4 color sampling
• Internal YCbCr 4:4:4 /4:2:2 to YCbCr 4:2:0 conversion capability
• Supports UHD resolutions up to 4096 x 2160p @ 60Hz and 1080p 3D
• Supports AMD GCN cards, Nvidia® Maxwell cards and Intel® HD 5XXX series and newer. Not intended for older architectures.
OS Support:
Windows 10, 8.1
Apple OS X
Input:
DisplayPort™ 1.2 Male
Output:
HDMI™ 1.2 Female
Other info:
• Poly Bag: 240 x 160 mm.
• Poly Bag Weight: 6gr
• Product: L210 x W44 x H14 mm
• Product Weight: 32gr.
• Weight product with Poly Bag: 38gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China
In the box:
Club 3D DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter
