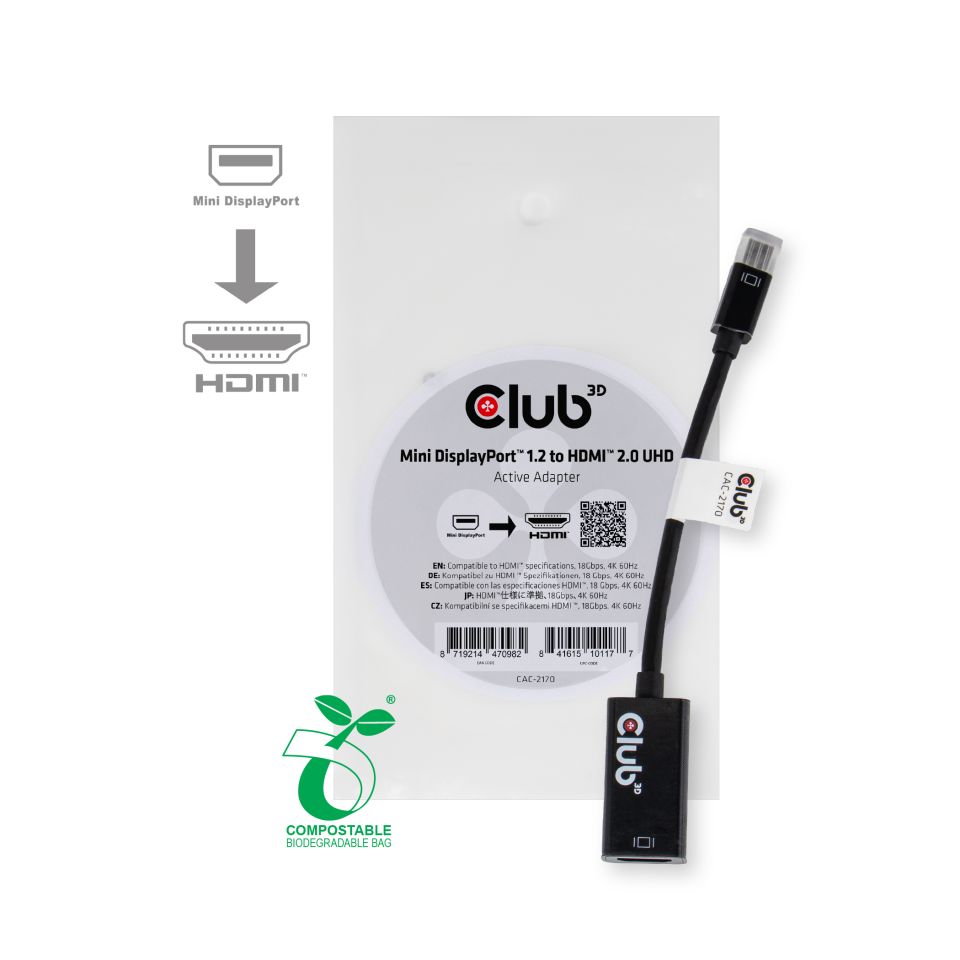

Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter
Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter
Enlarge

Mini DisplayPort 1.2 to HDMI 2.0 UHD Active Adapter

CAC-2170 - The Club 3Dis an active HDMI™ 2.0 signal converter. The Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter is the easiest solution for connecting your Mini DisplayPort™ 1.2 Game PC or Laptop to an HDMI™ enabled 4K UHD Television, monitor or Projector. The adapter is compliant to HDMI™2.0 specification allowing for 6Gbps TMD Sthroughput per channel. The interface in the adapter has three lanes for HDMI™ data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps.

Supports up to 4K UHD Resolution at 60Hz.
The Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter supports UHD resolutions of up to 4K UHD 4096x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your MiniDisplayPort™ 1.2 enabled device in Ultra High Resolution. Supporting up to 8 channels of audio, the adapter provides Ultra High Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/ 60 gameplay but lacks a native HDMI™ 2.0 output in their system configuration.

Related products
Mini DisplayPort 1.1 to HDMI 1.4 VR ready Passive Adapter
Mini DisplayPort 1.1 to HDMI 1.4 VR ready Passive Adapter
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.8 ft
Premium High Speed HDMI 2.0 4K60Hz UHD cable 3m/9.8 ft
HDMI 2.0 4K60Hz RedMere cable 10m/32.8ft
HDMI 2.0 4K60Hz RedMere cable 10m/32.8ft

Specifications

Model:
Product Name: Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter
Product Series: Adapters
Itemcode: CAC-2170
EAN code: 8719214470982
UPC code: 841615101177
Features:
• Compliant to DisplayPort™ Specification 1.2 for 1.62Gbps,2.7Gbps and 5.4Gbps per lane. Effective (video) bandwidth 17.28Gbps
• Compliant to HDMI™ 2.0 Specification, data rate up to 6Gbps per channel total throughput 18Gbps
• Supports full link training and no link training
• Repeater for HDCP 1.3 and HDCP 2.2
• Supports 24-bit color and 4:4:4 color sampling
• Internal YCbCr 4:4:4 /4:2:2 to YCbCr 4:2:0 conversion capability
• Supports UHD resolutions up to 4096 x 2160p @ 60Hz and 1080p 3D
• Supports AMD GCN cards, Nvidia® Maxwell cards and Intel® HD 5XXX series and newer. Not intended for older architectures.
OS Support:
Windows 10, 8.1
Apple OS X
Input:
Mini DisplayPort™ 1.2 Male
Output:
HDMI™ 2.0 Female
Other info:
• Poly Bag: 150 x 215 mm.
• Poly Bag Weight: 6gr
• Product LxWxD: 200x45x15 mm
• Product Weight: 56gr.
• Weight product with Poly Bag: 72gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China
In the box:
Club 3D Mini DisplayPort™ 1.2 to HDMI™ 2.0 UHD Active Adapter
