DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft
DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft
DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft
Enlarge

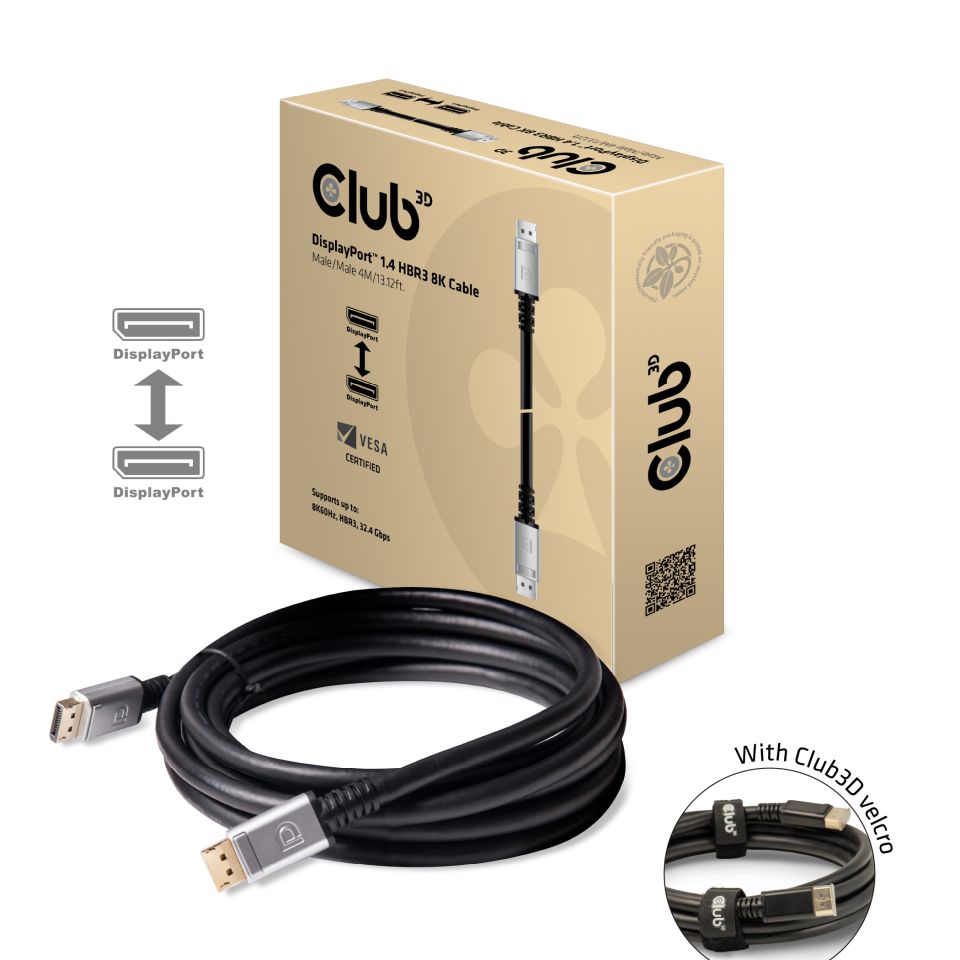

DisplayPort 1.4 HBR3 8K Cable M/M 4m /13.12ft

CAC-1069 - The Club 3D DisplayPort™ 1.4 HBR3 8K cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.

It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.

Related products
DisplayPort™ 1.4 HBR3 Cable VESA Certified  M/M 2 m / 6.56ft 28AWG
DisplayPort™ 1.4 HBR3 Cable VESA Certified M/M 2 m / 6.56ft 28AWG
DisplayPort™ to MiniDisplayPort™ 1.4 HBR3 Cable Male/Male 2M/6.56 Ft
DisplayPort™ to MiniDisplayPort™ 1.4 HBR3 Cable Male/Male 2M/6.56 Ft

Specifications

Model:
Product Name DisplayPort™ 1.4 HBR3 8K Cable Male/Male 4M / 13.12 ft.
Product Series: Cable
Itemcode: CAC-1069
EAN code: 8719214471064
UPC code: 841615101252
Features:
• Fully DisplayPort™ 1.4 Compliant, HBR3, 32.4Gbps, 24AWG
• Support for Display Stream Compression (DSC) 1.2
• Support for Forward Error Correction
• Support for up to 32 Inline Audio Channels
• Downwards compatible to older DisplayPort standards
• Support resolutions up to 8K @ 60Hz and 4K @ 144Hz
• Without DSC1.2 max resolution supported up to: - 5K @ 60Hz
• Gold Plated Connectors
• Vesa Certified
OS Support:
All
Input:
• DisplayPort™ 1.4 Male
Output:
• DisplayPort™ 1.4 Male
Other info:
• Box size: 210 x 210 x 50 mm.
• Box Weight: 80gr.
• Product Weight: 472 gr.
• Product height: 12mm.
• Product width: 19 mm.
• Product Length: 4 meter/ 13.12 feet
• Meets ROHS, FCC, and CE EMI requirements
• Made in China
In the box:
• Club 3D DisplayPort™ 1.4 HBR3 8K Cable
