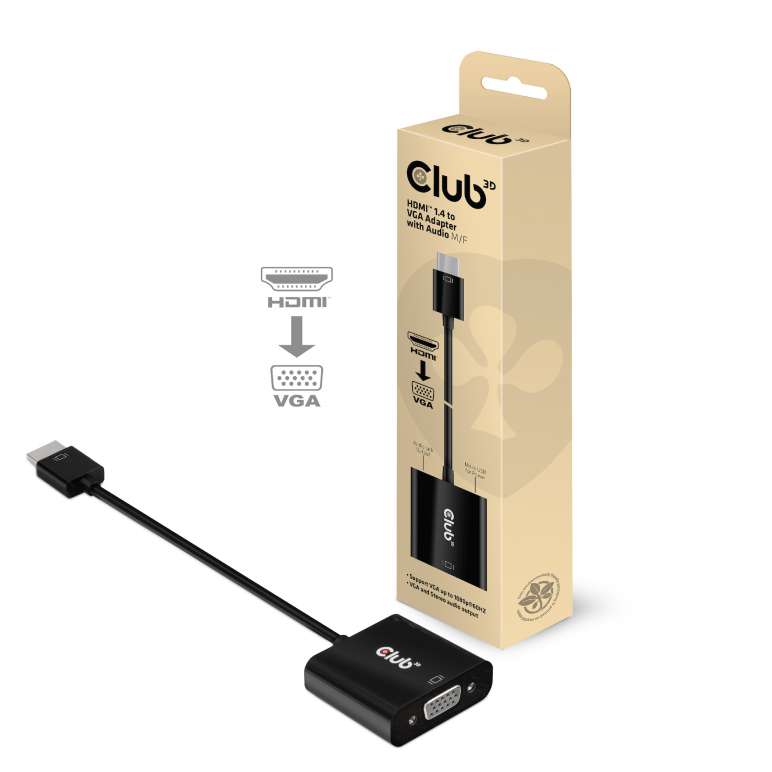

HDMI 1.4 to VGA Adapter with Audio M/F

The Club 3D CAC-1302 is an active HDMI™ 1.4 to VGA signal converter. It allows you to convert digital HDMI™ signal into analog VGA signal and extracts audio signal from HDMI™ signal through the R/L audio port.
Besides, if the HDMI™ source display can’t supply enough power, you can connect a power adapter or computer to the Micro USB female port to supply power for the adapter.

Specifications

Product Name:
HDMITM 1.4 to VGA Adapter with Audio M/F
Product Series: Adapter
Product Code: CAC-1302
EAN code: 8719214471668
UPC code: 841615101870

Features:
This product has many features that enable it to perform in a superior manner. Among those features you will find:
• Support HDMI™ A and Micro USB input, VGA and Stereo audio output
• Support HDMI™ resolutions up to 1080p@60HZ, HDMI™ Bandwidth 165MHZ/1.65Gbps per channel (4.95Gbps for all channels)
• Support VGA resolutions up to 1080p@60HZ
• Support analog audio format
• Easy to Use: Install in seconds, no need of setting.
• Support HDCP

OS Support: All

In the box:
• CAC-1302 HDMI™ 1.4 to VGA Adapter with Audio (Jack 0.35cm / 0.14inch)
• USB Power Cable (± 50cm / 19.9inch)

Available Interfaces
Input:
• HDMI™ 1.4 Type A, Micro USB
Output:
• VGA and Stereo Audio (analog)

Other info:
• Box size: 6 x 24 x 3.5cm / 2.36 x 9.45 x 1.38 inch
• Device size: 24 x 4.3x 1.45 cm / 9.5 x 1.69 x 0.57 inch
• Output Cable length approx.: 16 cm / 6.3 inch
• USB (Power) Cable length approx.: 50 cm / 19.69 inch
• Connector dimensions:
- Unit 4.5 x 4.3x 1.45 cm / 1.77 x 1.69 x 0.57 inch
• Device Weight: 28 gr / 0.99 oz
• USB Cable Weight: 14 gr / 0.49 oz
• Box Weight: 28 gr / 0.99 oz
• LDPE Bag Weight: 6 gr / 0.211 oz
• Total Weight: 76 gr / 2.68 oz
• Meets ROHS, FCC, and CE EMI requirements
