USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub
USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub
USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub
USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub
Enlarge

USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub

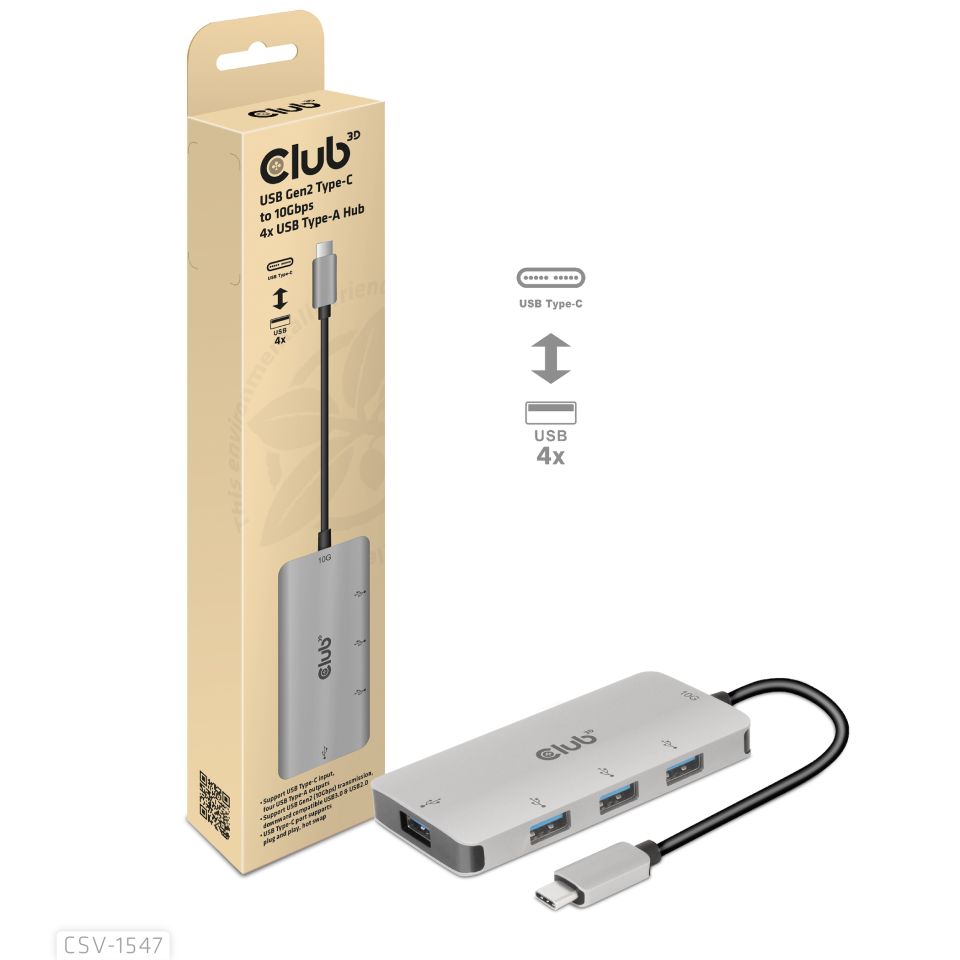

The Club 3D CSV-1547 is an USB Gen2 Type-C to four USB Type-A ports hub, which adds four common USB Type-A ports to your USB Type-C 10G enabled device for Data and Charging. It can work on any Type-C host ( PC, notebook, tablet, Mobile phone,etc). Works with all major Operating Systems.

Related products
USB Type-C to Ethernet + USB 3.0 + USB Type-C Charging Mini Dock
USB Type-C to Ethernet + USB 3.0 + USB Type-C Charging Mini Dock
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station

Specifications

Product Name:
USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub
Product Series: Universal Docking
Product Code: CSV-1547
EAN code: 8719214472375
UPC code: 841615102624

Features:
• Support USB Type-C input, four USB Type-A outputs
• Max 900mA per port (only one port is connected), when two or more ports are connected at the same time, the total max output depends on the host PC (eg, max 900mA on Chromebook, max 1.5A on Macbook)
• Support USB Gen2 (10Gbps) transmission, downward compatible USB3.0 & USB2.0
• USB port supports to charge and transmit data for the USB device simultaneously
• USB Type-C port supports plug and play, hot swap
• No external Power needed(Powered thru USB Type-C host connection)
• Easy to carry and use
• Sturdy and compact aluminium casing

OS Support:
• All

In the box:
• CSV-1547 USB Gen2 Type-C to 10Gbps 4x USB Type-A Hub

Available Interfaces
Input:
• USB Type-C Male
Output:
• 4x USB Type-A Female

Other info:
• Box size: 7 x 32 x 3.5cm 2.76 x 12.6 x 1.38 "
• Device size: 9.5 x 4.5 x 1.15 cm / 3.74 x 1.77 x 0.45"
• USB Host Cable length approx.: 16.7 cm / 6.57"
• Total length approx.: 26.2 cm / 10.31"
• USB Type-C Male Connector dimensions: .4 x 1.2 x 0.7cm / 1.34 x 0.47 x 0.28"
• Device Weight: 63 gr / 2.22 oz
• Box Weight: 42 gr / 1.48 oz
• LDPE Bag Weight: 5 gr / 0.17 oz
• Total Weight: 110 gr / 3.88 oz
• Meets ROHS, FCC, and CE EMI requirements

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
