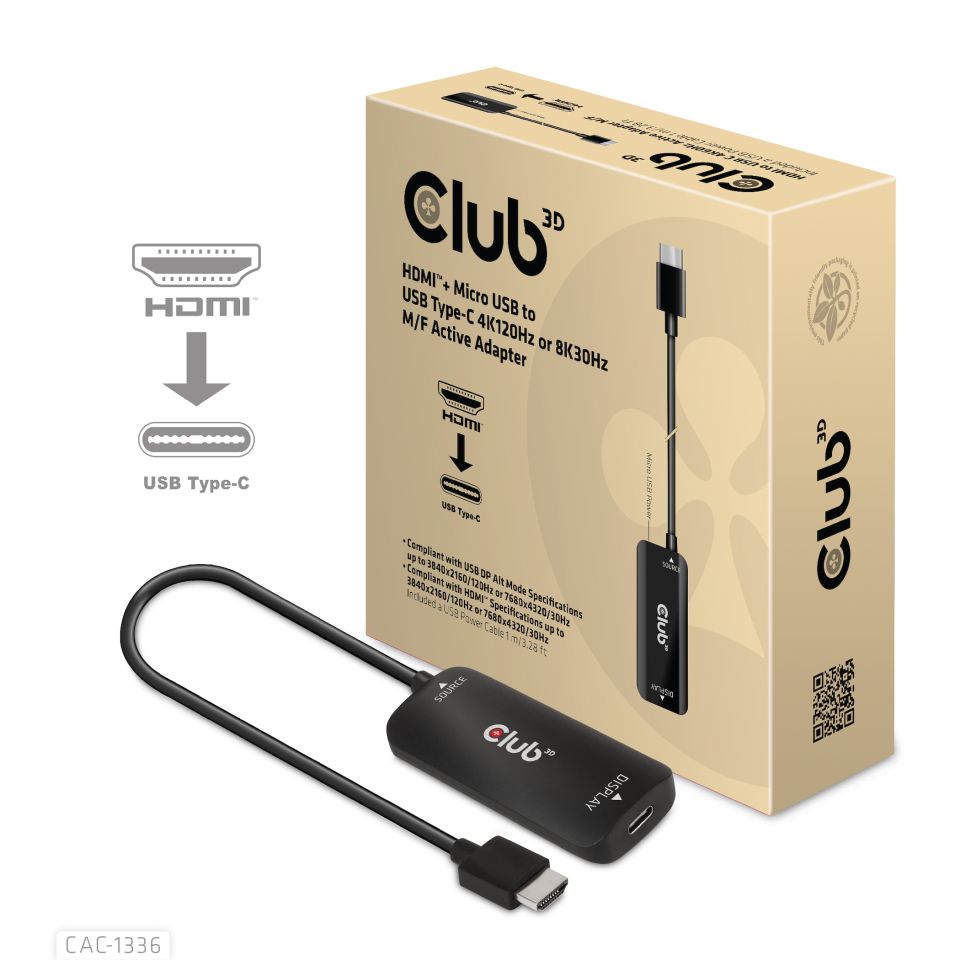

HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

Enlarge

HDMI + Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

The Club 3D CAC-1336 is the perfect solution to connect to any USB Type-C 8K30Hz or 4K120Hz ready displays from a HDMI™ source which does supports these resolutions/specifications.
If you have a PC or any other device that lacks the new USB Type-C 8K30Hz or 4K120Hz specifications, the Club3D CAC-1336 will be the simple way to connect your HDMI™ source device to your new USB Type-C 4K120Hz or 8K30Hz display(provided your source supports these resolutions).
The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.

Note: This adapter will only work on USB Type-C Displays that are self powered !

Please use one of our Club 3D certified Extension/Adapter cables to connect to your devices. For optimal usages of this adapter we highly recommend you to use the CAC-1576 or CAC-1571.

In case you need additional assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

CAC-1336 QUICK INSTALLATION GUIDE

Specifications

Product Name:

HDMI™+ Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

Product Series: Adapter

Product Code: CAC-1336

EAN code: 8719214472504

UPC code: 841615102754

Features:

• Compliant with USB DP Alt Mode Specifications up to 3840x2160/120Hz or 7680x4320/30Hz

• Compliant with HDMI™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz

• Support Max. resolution/refresh rates up to 4K120Hz or 8K30Hz

• Adapter is separatly powered thru a Micro USB Female port 7.5Watt (5V/1.5A)

• USB Type-A to Micro USB M/M 1m / 3.28 ft cable is supplied in the box

Note: This adapter will only work on USB Type-C Displays that are self powered !

Applications:

• For devices like laptop, desktop, gaming and display systems like TV.

• Perfect for Host Devices which are featured with video signal output for gaming, commercial applications.

Supported resolutions:

• Support Max. resolution/timing up to 4K120Hz or 8K30Hz

• ONLY games which are designed for 4K120Hz will provide this experience

This adapter will function with lower specifications GPU’s, be aware performance will be reduced due to the specifications of that GPU !!

• To achieve these resolutions it is highly recommended to use the CAC-1576 or CAC-1571 in combination with the adapter

OS Support:

• Microsoft, Mac OS

In the box:

• CAC-1336 HDMI™+ Micro USB to USB Type-C 4K120Hz or 8K30Hz M/F Active Adapter

• USB Type-A to Micro USB M/M 1m / 3.28 ft cable for powering the adapter

Available Interfaces

Input:

• 1x HDMI™ (Male)

• 1x Micro USB (Female)

Output:

• 1x USB Type-C (Female)

Other info:

• Box size 14.5 x 14.5 x 4.5 cm / 5.71 x 5.71 x 1.77"

• Device size: 7.2 x 3 x 1.2 cm / 2.83 x 1.18 x 0.47"

• Device Weight: 28 gr / 0.99 oz

• Total Cable length: Approx. 26 cm / 10.24"

• Power Cable length: 1m / 3.28 Ft

• Power Cable Weigth: 21 gr / 0.74 oz

• LDPE Bag Weight: 5gr / 0.18 oz

• Connector dimensions :

- HDMI™ Male: 4 x 0.7 x 1.8 cm / "

- USB Type-A Male: 3.7 x 0.7 x 1.5 cm / 1.46 x 0.28 x 0.6"

- Micro USB Male: 2.8 x 0.6 x 1 cm / 1.1 x 0.24 x 0.39"

• Box Weight: 45 gr / 1.59 oz

• Total Weight: 99 gr / 3.5 oz

• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
