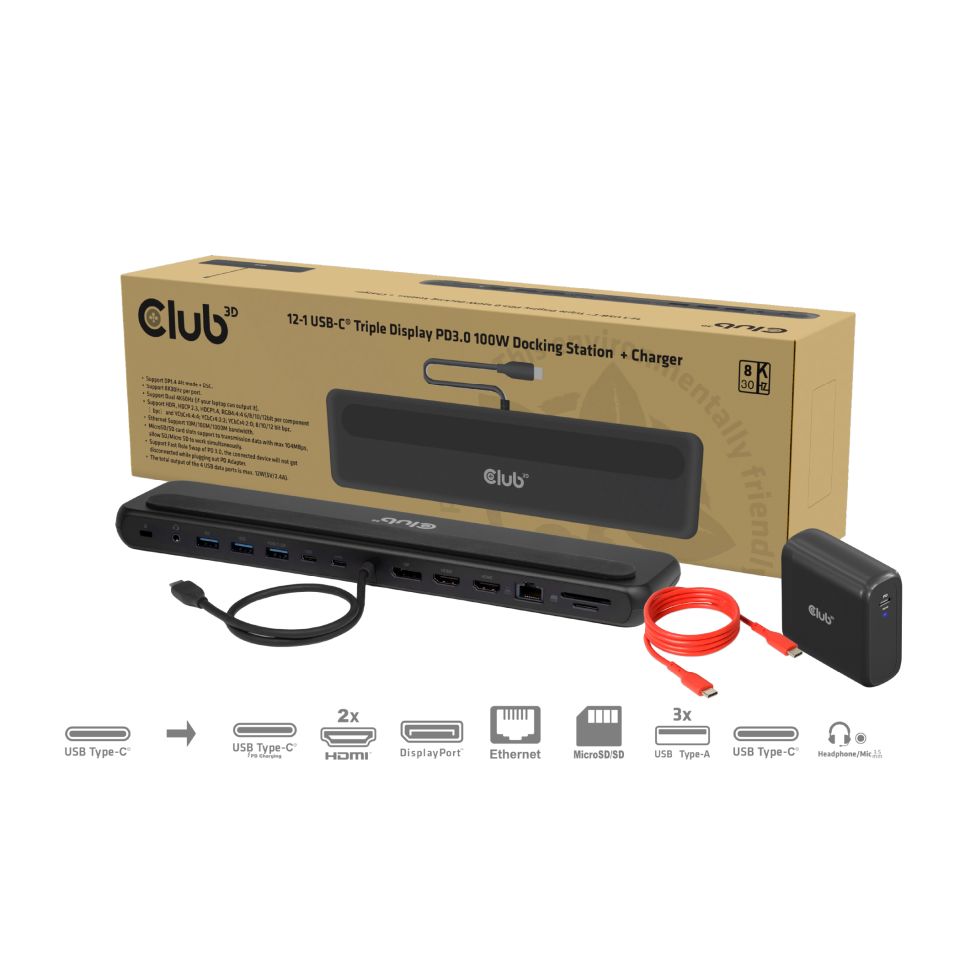

12-1 USB-C® Triple Display PD3.0 100W Docking Station + Charger

Enlarge

12-1 USB-C® Triple Display PD3.0 100W Docking Station + Charger

The CSV-2541 is a USB Type-C® 10Gbps 12-in-1 Triple Displays Docking Station with 2x HDMI™, 1x DisplayPort™, 1x USB Type-C® data port, 3x USB Type-A, RJ45, Card reader ,3.5mm audio port and USB Type-C® charging port, providing an ideal solution for extending the USB Type-C® or Thunderbolt host, especially for those host with a single USB Type-C® port. With bottom bracket design, it can be a stable stand for your laptops. It comes with the 100W charger and the cable included.

• Ergonomic design: Place your laptop on the docking station, plug in USB-C® and enjoy better connectivity, thermal and cable management for your setup.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gbps network controller that delivers speeds of 10/100/1000 Mbps; For laptops / devices without an Ethernet.
• 12 PORTS from one USB Type-C®: Expand the connectivity of a USB Type-C® computer by adding Four USB Ports (3x USB Type-A, 1x Type-C®) a Power Delivery 3.0 USB Type-C® Port Max. 100Watt upstream.
• 2 dedicated Card reader slots MicroSD/SD supports SD3.0(UHS-I) with max 104Mbps, card slots work simultaneously.

Specifications

Product Name:
12-1 USB-C® Triple Display PD3.0 100W Docking Station + Charger
Product Series: Docking Station
Product Code: CSV-2541
EAN code: 8719214473525
UPC code: 841615103775

Features:
• Support DP1.4 Alt mode + DSC.
• Support 8K30Hz per port.
• Support Dual 4K60Hz (if your laptop can output it).
• Support HDR, HDCP 2.3, HDCP1.4, RGB4:4:4 6/8/10/12bit per component (bpc) and YCbCr4:4:4; YCbCr4:2:2; YCbCr4:2:0; 8/10/12 bit bpc.
• Ethernet Support 10/100/1000Mbps bandwidth.
• MicroSD/SD card slots support to transmission data with max 104MBps, allow SD/Micro SD to work simultaneously.
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging out PD Adapter.
• The total output of the 4 USB data ports is max. 12W(5V/2.4A).

*Supported Resolutions:**
• 8K30Hz, 2x 4K60Hz, 3x(4K60Hz+ 2x 4K30Hz)

OS Support:
• Windows 11

In the box:
• 1x CSV-2541
• 1x 100W Charger
• 1x RED (Power ONLY) USB Type-C® cable (1m / 3.28 ft)

Available Interfaces
Input:
• 1x USB-C®

Output:
• 1x USB-C® PD
• 2x HDMI™
• 1x DisplayPort™
• 1x Ethernet
• 1x MicroSD/SD
• 3x USB-A
• 1x USB-C®
• 1x Headset Jack

Other info:
• Product size: 30 x 7.4 x 2.2cm / 11.81 × 2.91 × 0.87in
• Box size 36.8 x 10.6 x 7.5 / 14.49 x 4.17 x 2.95in
• Cable length approx.: 19cm / 7.48in
• Connector dimensions:
USB-C® 3.62 x 1.2 x 0.63cm / 1.43 x 0.47 x 0.25in
• Product Weight: 438g / 15.45oz
• Box Weight: 239g / 8.43oz
• Bio Bag Weight: 6g / 0.21oz
• Total Weight: 950g / 33.51oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). Make sure your USB-C® port supports DisplayPort ALT mode, which is required to send video through the port. To use the full potential of this device, your setup must support all required standards.
