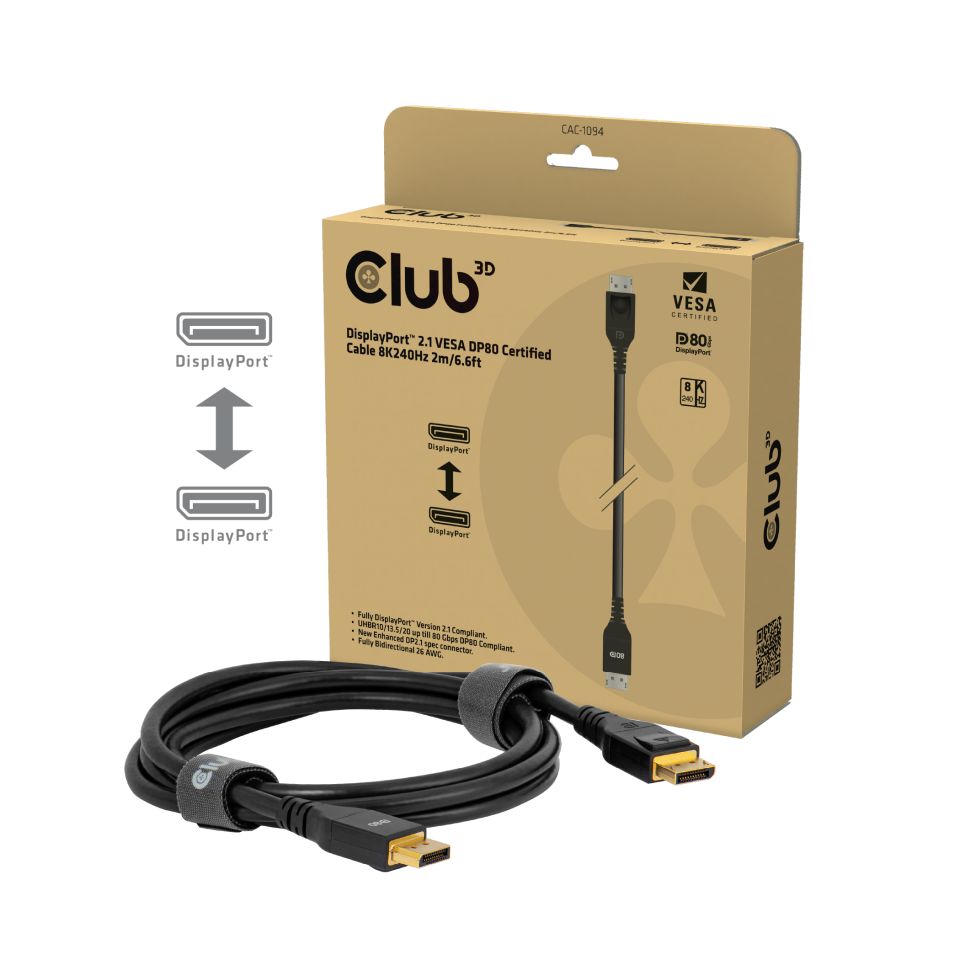

DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft

Enlarge

DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft

The Club 3D CAC-1094 DisplayPort™ 2.1 Cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32. It features locking DisplayPort™ connectors providing a secure, dependable connection, with NEW contact fingers special designed for these high speeds in a 26 AWG cable.

• EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
• HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
• VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality.
• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.

Specifications

Product Name:
DisplayPort™ 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.6ft
Product Series: Cable
Product Code: CAC-1094
EAN code: 8719214473549
UPC code: 841615103799

Features:
• Fully DisplayPort™ Version 2.1 Compliant.
• UHBR10/13.5/20 up till 80 Gbps DP80 Compliant.
• New Enhanced DP2.1 spec connector.
• Fully Bidirectional 26 AWG.
• VESA Certified.
• Support resolutions up to 8K240Hz or 10K60Hz.
• Support for up to 32 Inline Audio Channels.
• Downwards compatible to older DisplayPort™ standards.

*Supported Resolutions:**
• 8K240Hz, 10K60Hz

OS Support:
• All

In the box:
• 1x CAC-1094

Available Interfaces
Input:
• 1x DisplayPort™

Output:
• 1x DisplayPort™

Other info:
• Box size 17.5 x 17.5 x 4.5cm / 6.89 x 6.89 x 1.77in
• Cable length approx.: 2m / 6.56ft
• Connector dimensions:
DisplayPort™ 4.7 x 2 x 1.3cm / 1.85 x 0.79 x 0.51in
• Product Weight: 150g / 5.29oz
• Box Weight: 63g / 2.22oz
• Bio Bag Weight: 3g / 0.11oz
• Total Weight: 216g / 7.62oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). To use the full potential of this device, your setup must support all required standards.
