9-1 Dual HDMI™ Display USB-C® Hub PD3.0 100W

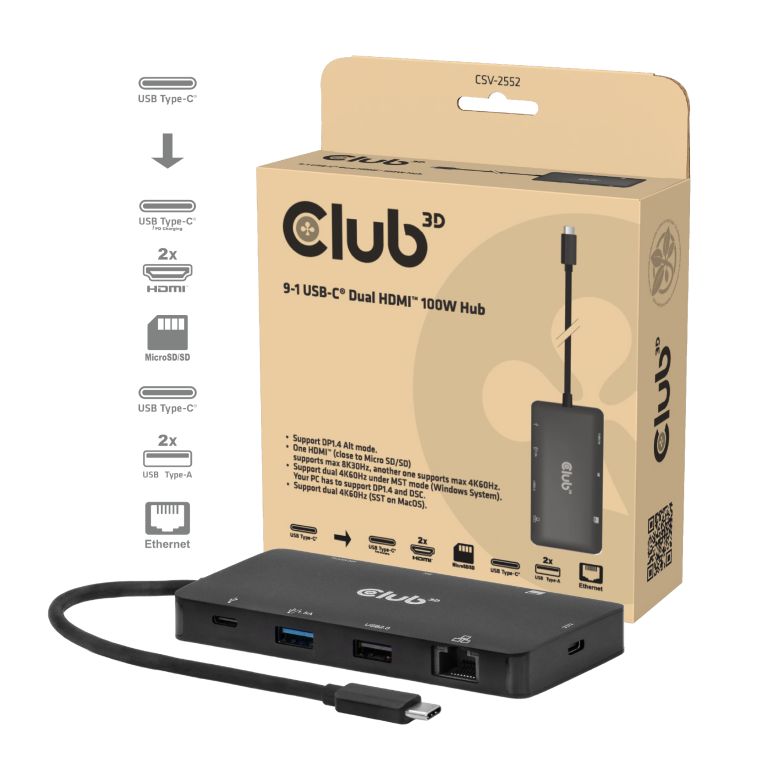

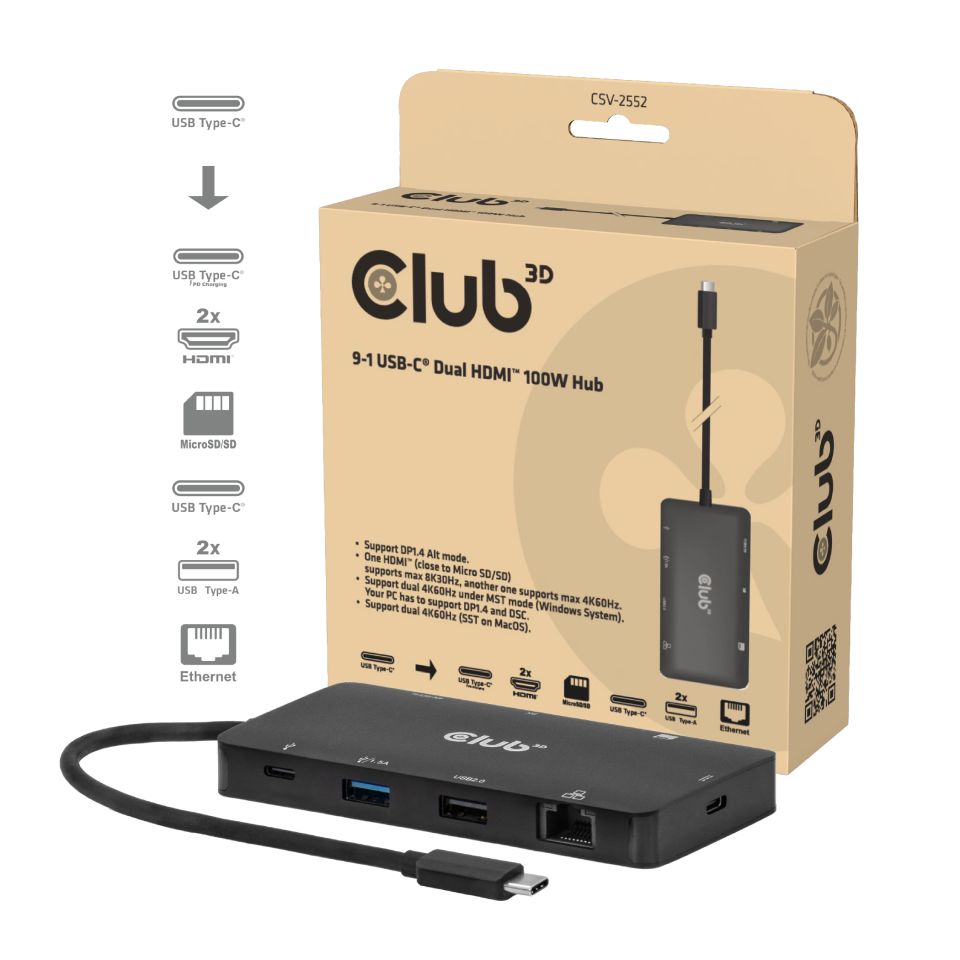

The Club 3D CSV-2552 is a USB-C® 9-1 hub with Dual HDMI™, 2x USB-A, 1x USB-C® data, RJ45, Micro SD/SD card slots and USB-C® charging female port, providing an ideal solution for extending the port of USB-C® or Thunderbolt host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB-C® port.

• Dual Displays hub with DP1.4 Alt mode, OUTPUT: 2x HDMI™ Connect up to 2 displays with a single USB-C® input, supporting resolutions up to two times 4K60Hz screen for an immersive multi-monitor setup.
• 1 GBASE-T GIGABIT ETHERNET: Features a 1Gbps network controller that delivers speeds of 10/100/1000 Mbps; For laptops / devices without an Ethernet, such as MacBook /iPad Air / Pro; USB-C® connectivity while providing power for PD3.0 charging.
• 1 PORT USB Type-C®: Expand the connectivity of a USB-C® computer by adding 4 USB Ports 2x USB Type-A, 1x Type-C® and a Power Delivery 3.0 USB-C® Port Max. 100Watt upstream.
• 2 dedicated Card reader slots Micro SD/SD supports SD3.0(UHS-II) with max 104Mbps, card slots work simultaneously.

Specifications

Product Name:
9-1 USB-C® Dual HDMI™ 100W Hub
Product Series: Hub
Product Code: CSV-2552
EAN code: 8719214473556
UPC code: 841615103805

Features:
• Support DP1.4 Alt mode.
• One HDMI™ (close to Micro SD/SD) supports max 8K30Hz, another one supports max 4K60Hz.
• Support dual 4K60Hz under MST mode (Windows System). Your PC has to support DP1.4 and DSC.
• Support dual 4K60Hz (SST on MacOS).
• Two USB-A ports and one USB-C® data port. The USB-C® and one USB-A port support speeds up to 5 Gbps, while the other USB-A port is USB 2.0.
• The total power output of the 3 USB data ports is up to 12W([email protected]).
• Allow 2 card slots to work simultaneously. Support Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s)/SDR25(25Mbyte/s)/SDR50(50Mbyte/s)/DDR50(50Mbyte/s)/SDR104(104Mbyte/s).
• Support 10/100/1000Mbps.
• USB-C® PD Charging port supports PD3.0 with max 100 Watt.
• Support Fast Role Swap of PD 3.0, the connected device will not get disconnected while plugging out PD Adapter.

*Supported Resolutions:**
• 8K30Hz, 4K60Hz or 2x 4K60Hz

OS Support:
• Windows 11, MacOS 15

In the box:
• 1x CSV-2552

Available Interfaces
Input:
• 1x USB-C®

Output:
• 1x USB-C® PD
• 2x HDMI™
• 1x MicroSD/SD
• 1x USB-C®
• 2x USB-A
• 1x Ethernet

Other info:
• Product size: 11.5 x 5.9 x 1.4cm / 4.53 x 2.32 x 0.55in
• Box size 14.5 x 14.5 x 4.5cm / 5.71 x 5.71 x 1.77in
• Cable length approx.: 17cm / 6.7in
• Connector dimensions:
USB-C® 3.62 x 1.2 x 0.63cm / 1.43 x 0.47 x 0.25in
• Product Weight: 121g / 4.27oz
• Box Weight: 45g / 1.59oz
• Bio Bag Weight: 3g / 0.11oz
• Total Weight: 169g / 5.96oz
• Meets ROHS, FCC, and CE EMI requirements

*The list of supported resolutions is based on the use of DSC (Display Stream Compression). Make sure your USB-C® port supports DisplayPort ALT mode, which is required to send video through the port. To use the full potential of this device, your setup must support all required standards.
