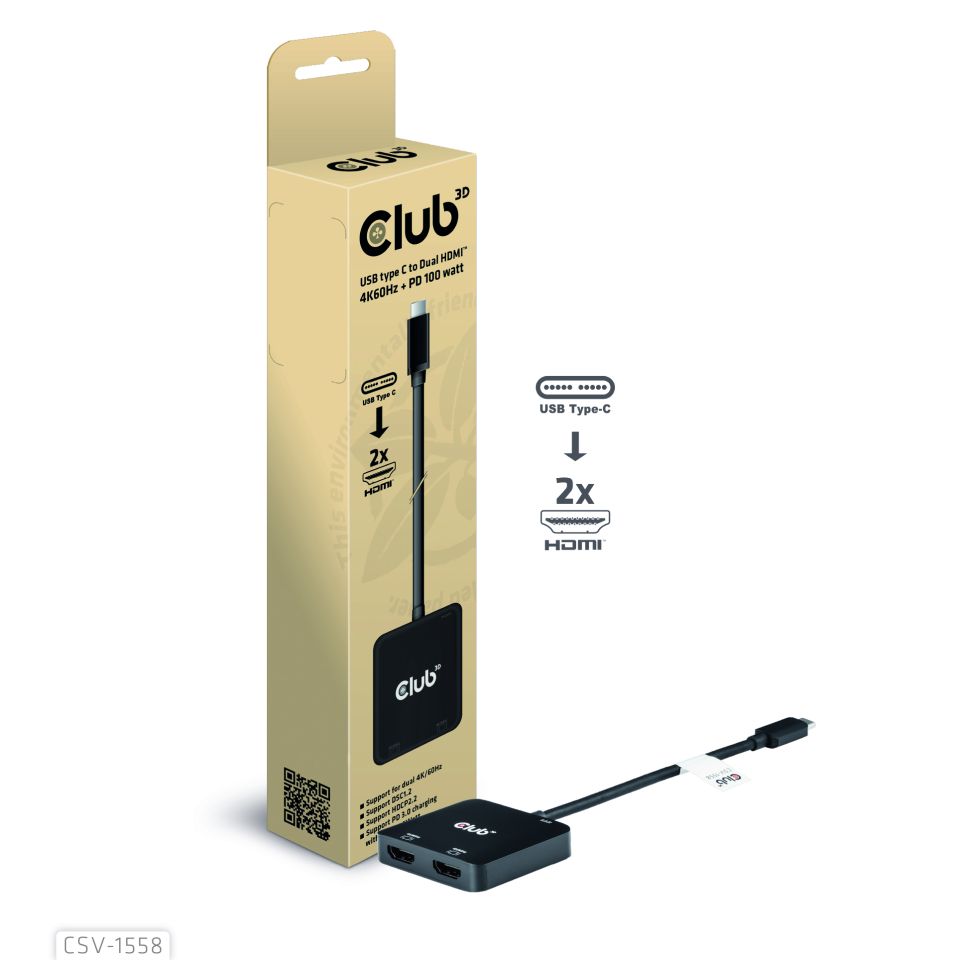

USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt
USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt
USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt
Enlarge

USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt

The Club 3D CSV-1558 USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB Type-C port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB Type-C or Thunderbolt™ devices (including Phones with an USB Type-C connetion and DP™ Alt modesupport).

Related products
USB2 Type-C Bi-Directional USB-IF Certified Cable Data 480Mb, PD 240W(48V/5A) EPR M/M 1m / 3.23 ft
USB2 Type-C Bi-Directional USB-IF Certified Cable Data 480Mb, PD 240W(48V/5A) EPR M/M 1m / 3.23 ft
USB2 Type-C Bi-Directional USB-IF Certified Cable, Data 480Mb, PD 240W(48V/5A) EPR M/M 2m/6.56ft
USB2 Type-C Bi-Directional USB-IF Certified Cable, Data 480Mb, PD 240W(48V/5A) EPR M/M 2m/6.56ft
HDMI 2.0 4K60Hz UHD 360 Degree Rotary cable 2m/6.56ft
HDMI 2.0 4K60Hz UHD 360 Degree Rotary cable 2m/6.56ft

Specifications

Product Name: USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt
Produktserie: Adapter
Artikelcode: CSV-1558
EAN code: 8719214472979
UPC code: 841615102914

Features:
• Support DP1.4™ Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
• Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
• Support DSC1.2
• Support HDCP2.2
• Support HDR
• Support PD 3.0 charging with max 100Watt on separate USB Type-C port
Input:
- 1x Type-C Male (to host)
• Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Support reversible connection
Output:
- 2x HDMI™ Female
• Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
•Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
• Support 8/10/12 bit color depth output
• Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/ YCbCr4:2:0
• Support DSC1.2
• Support HDCP2.2
• Support HDR
• Note1: to achieve dual max 4K/60Hz, the host should support DP1.4 Alt mode, when working on DP1.2 host, dual max 4K/30Hz due to bandwidth limitation.
• Note2: HDR support ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast and wider color gamuts—on a scene-by-scene or even a frame-by-frame basis
-1x USB Type-C Female PD Charging
• Support PD 3.0 charging with max. 100Watt
Note3: For PD charging your host device please use our CAC-1511 or CAC-1573 cables.

OS Support:
• Windows 10 or upwards, Mac 13.5.2

In the box:
• 1X CSV-1558 USB Type-C to Dual HDMI™ 4K60Hz + PD 100 Watt
Available Interfaces
Input:
• 1x USB Type-C Male
Output:
• 2x HDMI™ Female
• 1x USB Type-C Female(for PD Charging) the host device Max. 100Watt

Other info:
• Box size: 6 x 24 x 3.5 cm / 2.36 x 9.45 x 1.38"
• Device size: 5 x 5.5 x 0.9 cm / 1.97 x 2.16 x 0.35"
• Input Cable length approx.: 15 cm / 5.91"
• USB Type-Connector dimensions: 2.9 x 1.2 x 0.5 cm / 1.14 x 0.47 x 0.2"
• Device Weight: 45 gr / 1.59 oz
• Box Weight: 28 gr / 0.99 oz
• Bio Degradable Bag size: 9 x 30 cm / 3.54 x 11.81"
• Bio Degradable Bag Weight: 1 gr./ 0.04 oz
• Total Weight: 74 gr / 2.61 oz
• Meets ROHS, FCC, and CE EMI requirements
Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
- Club 3D uses Bio-Degradable bags according to the EN/DIN 13432
- Club 3D uses environmentally friendly packaging and is printed on recycled paper.
Warning Safe Usage
- Product Only to be used at altitude 2000 meters/6562 feet and below
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
