USB 3.1 Type C to VGA Active Adapter
USB 3.1 Type C to VGA Active Adapter
Enlarge

USB 3.1 Type C to VGA Active Adapter

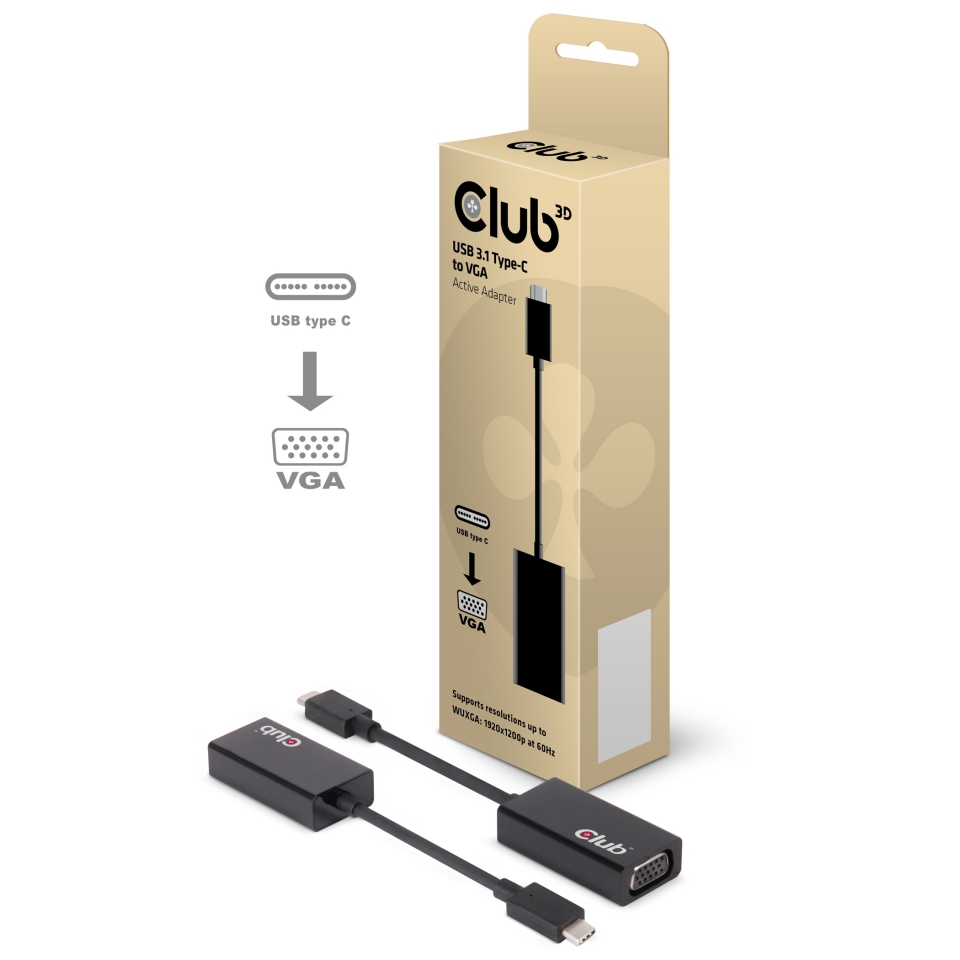

CAC-1502 The Club 3D CAC-1502 is an Active VGA signal converter. This USB-C to VGA Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to a VGA enabled Monitor or Projector. The VGA adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is also ideal for use with notebooks and Ultrabooks.

Supports up to WUXGA Resolution (1920x1200 pixels).

The USB-C to VGA adapter supports HD resolutions of up to Full HD (1080p) for a clear, sharp picture. The support of 60FPS (frames per second) provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB-C enabled device on a high-resolution VGA Display Device.

Compatible with all Operating Systems.
The USB-C to VGA Adapter supports all USB-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of its USB-C port.

Related products
USB 3.1 Type C to Gigabit Ethernet Active Adapter
USB 3.1 Type C to Gigabit Ethernet Active Adapter
USB Type-C to HDMI™ 1.4  Active Adapter
USB Type-C to HDMI™ 1.4 Active Adapter
Mini HDMI™ to HDMI™ 2.0 Cable  Male / Male 1 M./ 3.28 Ft.
Mini HDMI™ to HDMI™ 2.0 Cable Male / Male 1 M./ 3.28 Ft.

Specifications

Maximum resolution:
WUXGA 1920x1200p @ 60Hz
Connector 1
USB Type-C Male
Connector 2
VGA Female
Model
Product Name: USB 3.1 Type-C to VGA Active Adapter
Product Series: Accessories
Weight: 56 gr
Cable length: 180 mm
Item Code: CAC-1502
EAN Code: 8719214470081
UPC Code: 841615100170
Features
Reversible USB Type-C connector
Compliant to VESA DisplayPort Alt Mode Standard
Compliant to VGA analog display standard with 15 pin D-Sub conn
Supports Monitor resolutions up to WUXGA 1920 x 1200p @ 60Hz
Powered by USB port (no external power needed)
Compatibility
Supports AMD, Nvidia® and Intel® HD/ Iris™ graphics solutions
Operating Systems
Microsoft Windows
Apple OS X
Google Chrome OS
In the Box
Club 3D CAC-1502 USB 3.1 Type-C to VGA Active Adapter

Technology

USB

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
