Displayport to VGA Active Adapter
Displayport to VGA Active Adapter
Enlarge

Displayport to VGA Active Adapter

CAC-2003 - The Club 3D is an active DisplayPort™ to VGA signal converter. It enables you to connect your analog VGA Televisions, Monitors or Projectors to your Desktop or Laptop with DisplayPort™ output.
The adapter offers hassle free plug and play functionality, so no Driver installation needed and it is powered by the DisplayPort™ output.

The DisplayPort™ interface in the adapter consists of two main lanes for DP data, AUX channel, HPD signal and power. The VGA output is compliant to VSIS standard and supports up to WUXGA RB timings.

Supports resolutions up to WUXGA 1920x1200p @ 60Hz.
The adapter works with AMD, Nvidia and Intel Graphic Solutions.

Related products
DisplayPort 1.4 HBR3 Cable M/M 2m/6.56ft.
DisplayPort 1.4 HBR3 Cable M/M 2m/6.56ft.
DisplayPort 1.2 Cable to HDMI 2.0 UHD 4K60Hz Active Adapter M/M 3m/9.84ft
DisplayPort 1.2 Cable to HDMI 2.0 UHD 4K60Hz Active Adapter M/M 3m/9.84ft
DisplayPort 1.4 to DisplayPort 1.4 M/M 1m/3.28ft
DisplayPort 1.4 to DisplayPort 1.4 M/M 1m/3.28ft

Specifications

Model:
Product Name: DisplayPort™ to VGA Active Adapter
Product Series: Adapters
Itemcode: CAC-2003
EAN code: 8719214470951
UPC code: 841615101146
Features:
• DisplayPort™ 1.1a compliant receiver offering 5.4Gbps bandwidth over 2 lanes
• Supports resolutions up to WUXGA 1920x1200p at 60Hz
• Supports HDTV formats up to 1920x1080p Full HD
• Powered by the DisplayPort™ output
• Automatic sink detection
• Support for multi-monitor setups and AMD Eyefinity
• Compatible with AMD, Nvidia and Intel Graphics solutions
OS Support:
• Microsoft Windows 10, 8.1
• Apple OS X
Input:
DisplayPort™ Male
Output:
VGA Female
Other info:
• Poly Bag: 240 x 160 mm.
• Poly Bag Weight: 9 gr
• Product LxWxD: 250 x 38 x 12 mm
• Product Weight: 42 gr.
• Weight product with Poly Bag: 51 gr.
• Meets ROHS, FCC, and CE EMI requirements
• Made in China

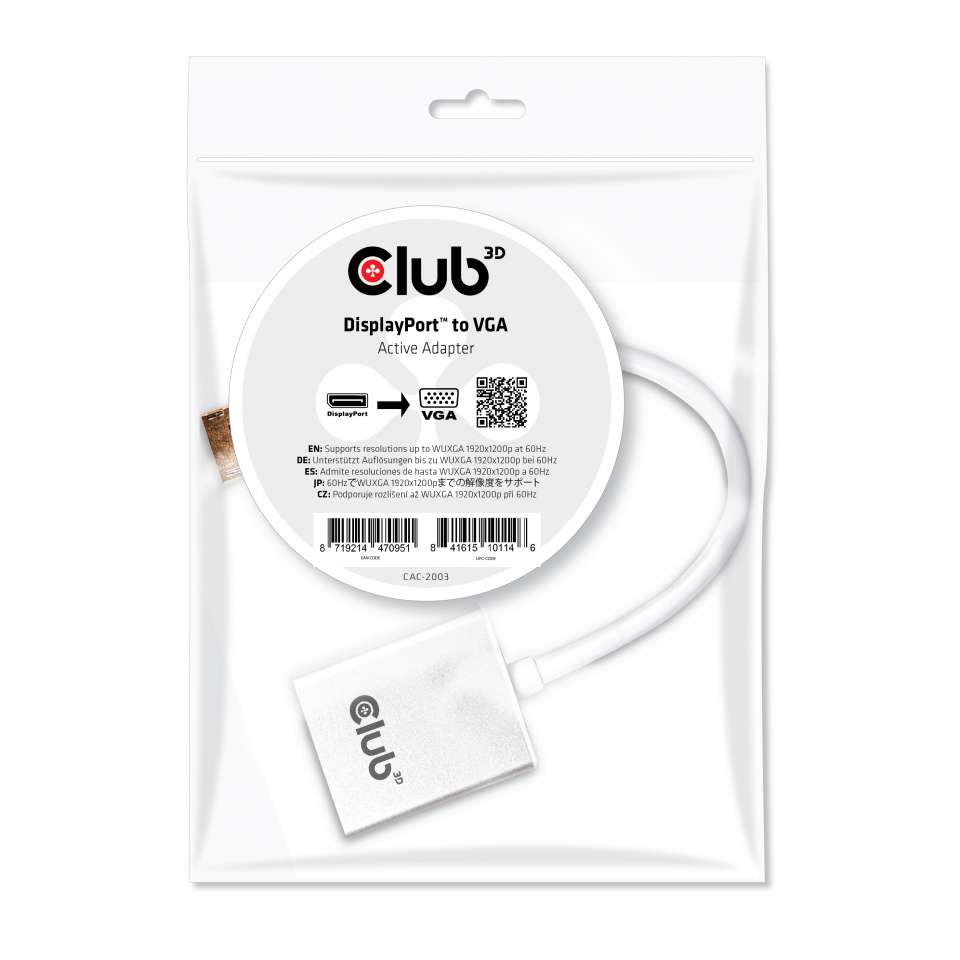

In the box:
• Club 3D CAC-2003 DisplayPort™ to VGA Active Adapter
