USB 3.0 + Mini DisplayPort™ MST Docking Station

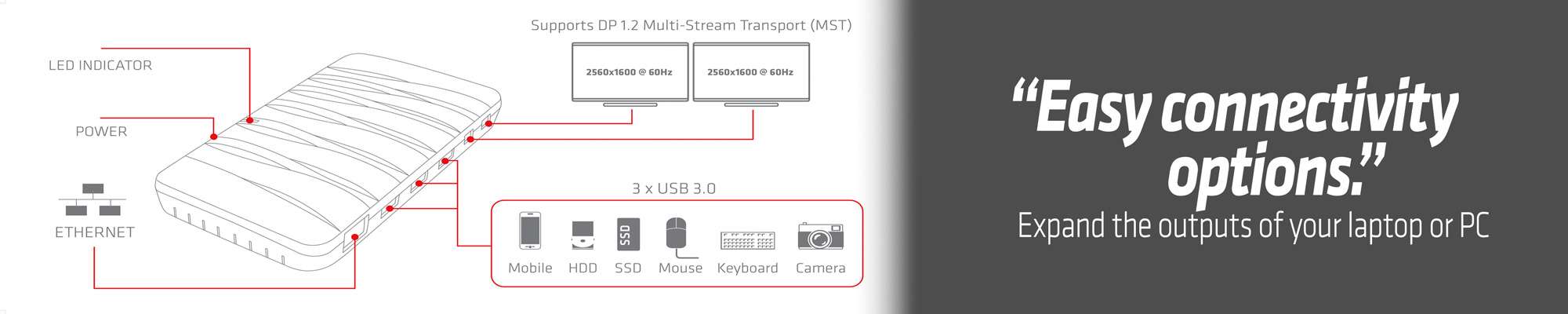

CSV-3203 The SenseVision USB 3.1 Gen1 + Mini DP Docking Station can easily connect to your Microsoft Surface Pro 2/3/4 Tablet or Laptop and enable connectivity to a full range of peripherals like keyboards, mice and storage devices. It has three built-in USB 3.1 Gen1 ports, two MiniDisplayPort™ 1.2 outputs and one Gigabit Ethernet port. You can even extend the connections of the USB ports further to add more peripherals or USB devices. Featuring Multi Stream Transport technology, it supports dual screen setup with resolutions up to 2 x 2560x1600p 60Hz.
Dual Mode DisplayPort™ (DP++)
The MST Hub supports Dual Mode DisplayPort™ (DP++) which allows the use of DVI or HDMI™ Monitors via passive Adapters.
Ultrabooks, Tablets and other slim notebook computers are sleek but they often lack connectivity possibilities. With SenseVision USB 3.1 Gen1 + Dual Mini DP docking station you have access to all your devices through just a single USB 3.0 and Mini DisplayPort™ cable.
Get even more from your Surface Pro 2/ 3/4 tablet with its powerful Mini DisplayPort™ output. Microsoft Surface Pro tablets have powerful Intel Core CPU’s and are capable to drive up to 2 external displays using Multi Stream Transport.
The SenseVision USB 3.1 Gen1 + Dual Mini DP docking station features a scan button which can/should be used when the PC does not recognize the connected screens.
Check out the downloads tab for more information
|Product Name: SenseVision USB 3.1 Gen1 + Mini DisplayPort MST Docking Station|
|Product Series: SenseVision|
|Item Code: CSV-3203|
|EAN Code: 8717249401025|
|UPC Code: 854365005855|
|USB 3.1 Gen1 & Mini DisplayPort 1.2|
|2x Mini Displayport 1.2|
|3x USB 3.1 Gen1 Type A|
|1x Gigabit Ehternet RJ45|
|In the package|
|Club 3D SenseVision USB 3.1 Gen1 + Mini DisplayPort MST Docking Station|
|• Compliant with DisplayPort™ 1.2 secifications|
|• Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)|
|• Supports DP 1.2 Multi-Stream Transport (MST)|
|• Supported Max Resolutions:|
|For Single Screen Setup: 3840x2160 @ 60Hz|
|For Dual Screen Setup: 2 x 2560x1600 @ 60Hz|
|• Expands a USB 3.1 Gen1 port to three USB 3.1 Gen1 ports|
|• Gigabit Ethernet 10/100/1000 port|
|• Ethernet supports Wake-on-LAN technology, crossover detection|
|• Power Adapter: 100-240VAC, 50/60Hz, operating 19.5W|
|Windows 10, 8.1|
