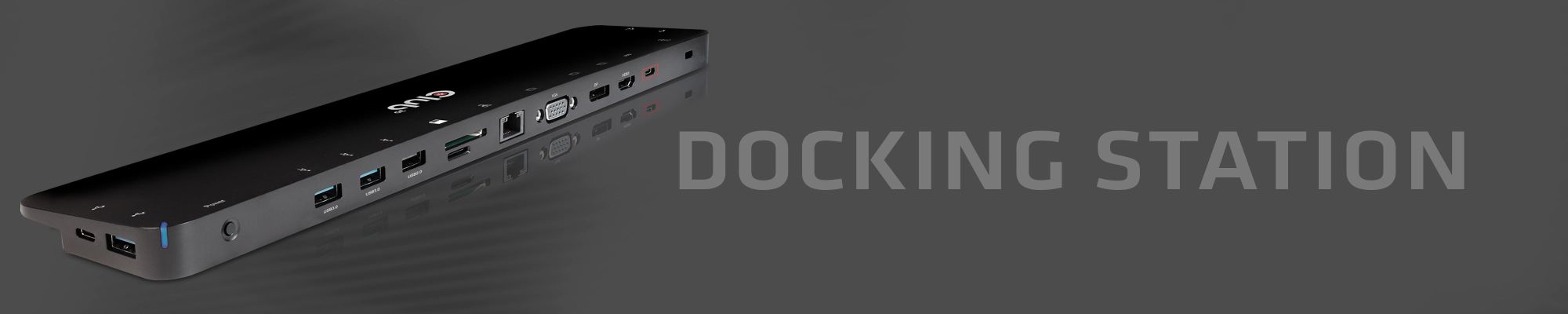

Ultra Smart Docking Station

CSV-3242HDA The Club 3D USB 3.1 Gen 1 Ultra Smart Docking station is the best solution for expanding the connectivity ports on your Laptop or Ultrabook, allowing it to be used as a traditional Desktop PC. The USB 3.1 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favorite USB peripherals and allows for two external monitors one via HDMI™ and one via DVI-D or VGA, a wired network connection as well as audio and microphone outputs. All it needs is a free USB 3.1 Gen 1 port on your Laptop or Ultrabook to connect to the Ultra Smart Docking station via a single USB cable.

Connections:

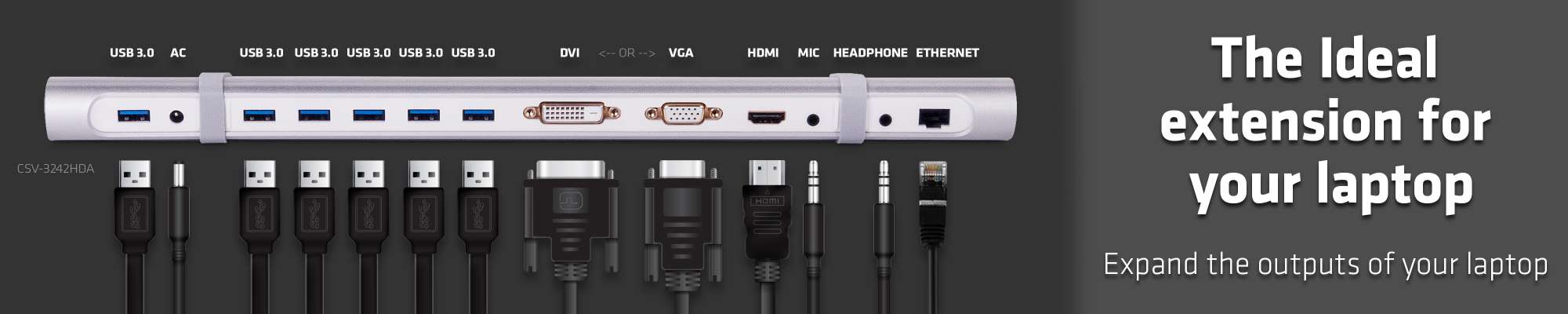

From the single USB 3.1 Gen 1 uplink the Club 3D Ultra Smart docking Station offers a complete range of output connections: 5 x USB 3.1 Gen 1, Card-reader for (Micro) SD, Gigabit Ethernet port, DVI-D or VGA and HDMI™ ports, Audio and Microphone.

Design:
The Club3D Ultra Smart Docking Station has a convenient and slim Bar Design. The sturdy, brushed aluminium casing makes it crush resistant, high temperature resistant and gives it a premium look and feel. The compact design makes it easy to transport and to place on your desk. The rubber bands keep it in place when you position your device on it.

Check out the downloads tab for more information

Specifications

Model
Product Name: Club 3D Ultra Smart Docking Station
Product Series: SenseVision
Item Code: CSV-3242HDA
EAN Code: 8719214470029
UPC code: 841615100118

Interface
USB 3.1 Gen 1

Voltage
14.43W operating power
1.95W Suspend mode

Output Configuration
USB 3.1 Gen 1 to HDMI / DVI or VGA / USB 3.1 Gen 1 x5 / RJ 45 Ethernet / 3.5mm Audio jack / 3.5mm Microphone jack

In the package
Club 3D Ultra Smart Docking Station
CD driver
USB Cable (1m)
Power Adapter

Features:
• Compatible with USB 3.1 Gen 1 specification
• Supports HDMI
• Supports DVI-D or VGA
• Supports resolutions up to:
- For Single Screen Setup: 2048x1152p (or 1920x1200p) @60Hz
- For Dual Screen Setup: 2 x 2048x1152p (or 1920x1200p) @60Hz
• DisplayLink DL-3900 chip inside
• Supports Audio 2.1 channel
• Supports Microphone
• Supports Gigabit Ethernet
• (Micro) SD card reader
• Power button

The minimum requirements for the PC are:
CPU: Dual Core Intel or AMD CPU, 2GHz or higher
GPU: Intel integrated graphics, AMD or Nvidia
RAM: 2GB or above
USB port: 3.1 Gen 1
30MB of available disk space

Supported Operating Systems:
WIN 10 / 8.1
