USB C Smart Reader

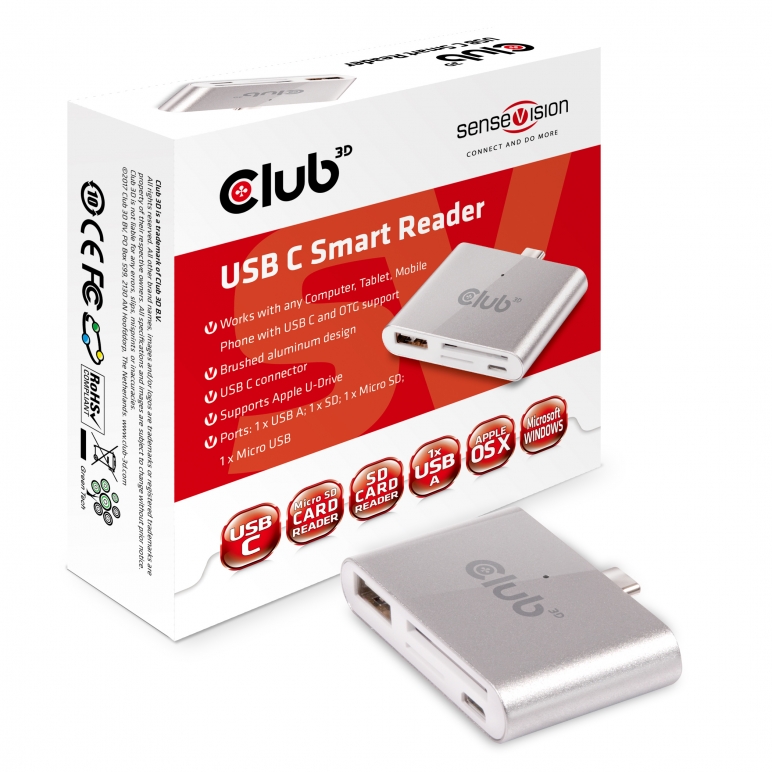

CSV-1590 The SenseVision USB C Smart Reader is a compact and stylish mobile companion with a brushed aluminum housing. It is fully compatible with Computers, Tablets and Mobile Phones with USB Type C connection and OTG Function. The SenseVision USB Smart Reader also supports Apple U Drive. U-Drive allows you to organize files from iPhone to external accessories.
USB OTG:
USB On-The-Go, often abbreviated to USB OTG or just OTG, is a specification that was introduced in 2001 that allows USB devices, such as Smart Readers or mobile phones, to act as a host, allowing other USB devices, such as USB flash drives, SD Cards, Mice or keyboards, to be attached to them.
Check out the downloads tab for more information
Specifications
Model |
Product Name: USB C Smart Reader |
Product Series: SenseVision |
Item Code: CSV-1590 |
EAN Code: 8719214470753 |
UPC Code: 841615100934 |
Features: |
• Brushed aluminum housing |
• USB C connector |
• Ports: 1 x USB A ; 1 x SD; 1 x Micro SD* ; 1 x Micro USB ** |
• Works on any Computer, Tablet, Mobile Phone with USB C Port and OTG support. |
• Can also be used as memory expension for Mobile Phone or Tablet. |
• Supports Apple U Drive. |
• Transmisison speed up to 5Gbps |
* Cannot use SD and Micro SD at the same time |
** Cannot use USB C and Micro USB connectors at the same time |
OS Support: |
All |
In the box: |
• USB C Smart Reader |
Inputs: |
• 1 x USB C Male |
Outputs: |
• 1 x USB A Female |
• 1 x Micro USB Female |
• 1 x Secure Digital (SD) Female |
• 1 x Micro Secure Digital (SD) Female |
Other info: |
• Box size: 75 x 75 x 22 mm |
• Adapter size: 38 (L) x 53 (W) x 11 (H)mm |
• Weight: 91 gr. |
Technology
USB
Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed + SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
Read more
PDF files
- SPECIFICATION SHEET_CSV-1590_EN.pdf
- SPECIFICATION SHEET_CSV-1590_DE.pdf
- CSV-1590-PROMO-SHEET.pdf
- HOW_2_CSV-1590.pdf
