USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock
USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock
USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock
Enlarge

USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock

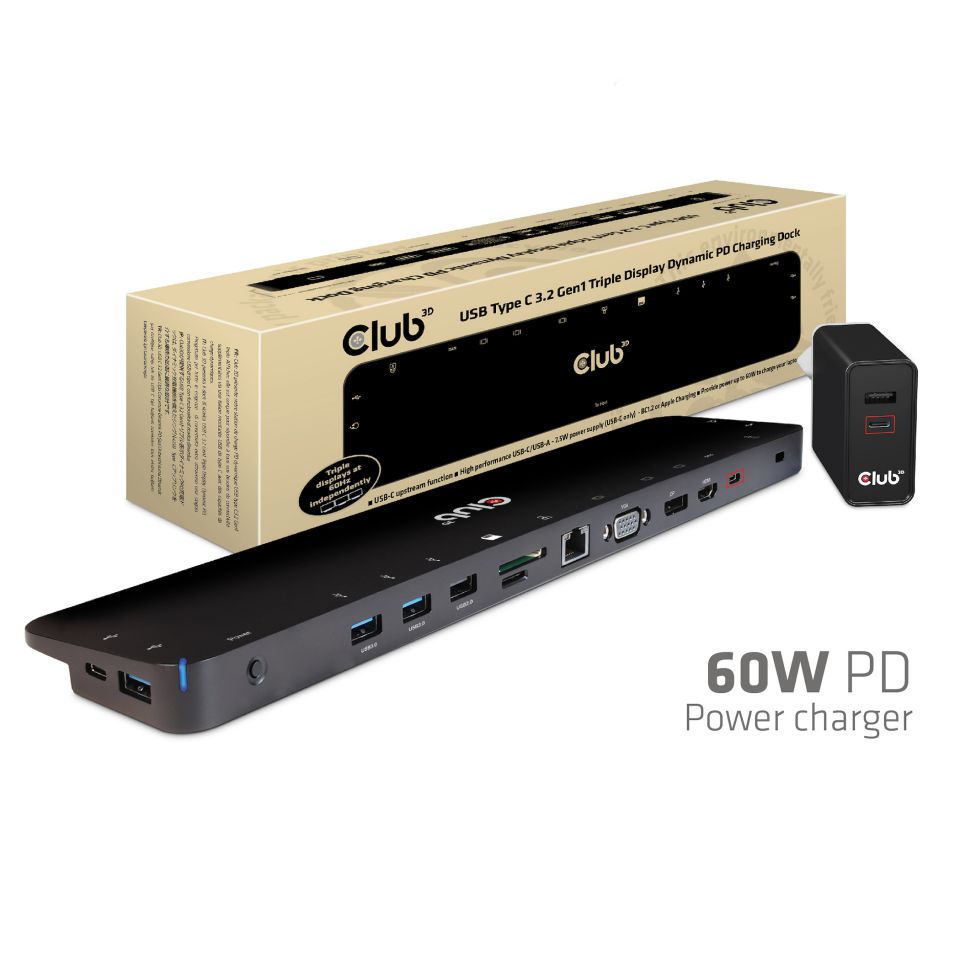

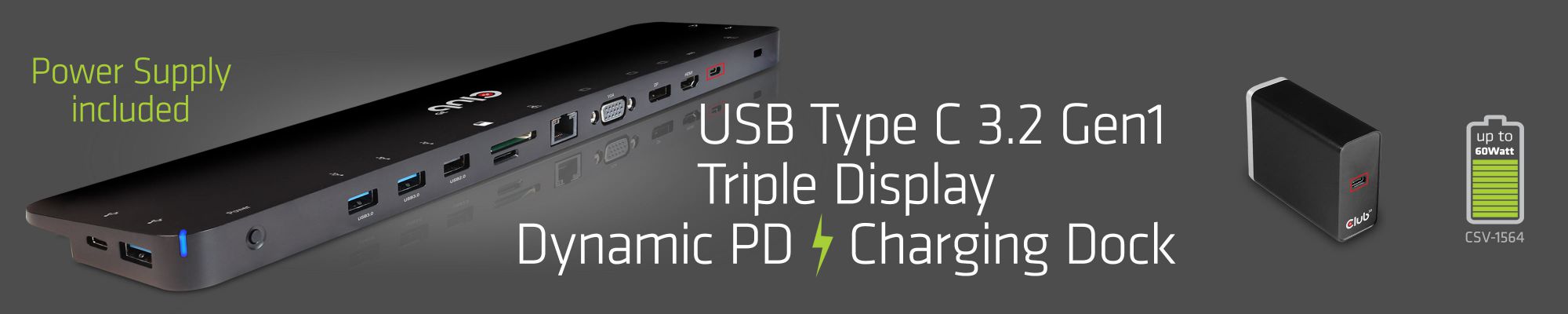

CSV-1564 - The Club-3D USB 3.2 Gen1 C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.

So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.

For Video Signal the source device needs to support DisplayPort™ Alt Mode

Related products
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station
MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor
MST Hub USB 3.1 Gen1 Type C to DisplayPort™ 1.2 Dual Monitor

Specifications

Product Name: USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock
Product Series: Docking Station
Itemcode: CSV-1564
EAN code: 8719214471323
UPC code: 841615101511
Features:
• Supports DP Alt Mode and PD 3.0
• Supports max. 5Gbps data transmission on the USB 3.2 Gen1 Type C ports
• One USB 3.2 Gen1 Type C Data port
• One USB 3.2 Gen1 Type C port supports PD charging with max 100W(20V/5A) Bundled with 60W Power Supply (for Notebooks with current consumption up to 60W)
• HDMI™ max. 4K 30 Hz
• DP™ max. 4K 30 Hz
• VGA max. 1920x1200 60Hz
Under SST Mode*
  VGA HDMI DP
Single Port Connected 1080p/60Hz NC NC
NC 4K/30Hz NC
NC NC 4K/30Hz
Dual Ports Connected 1080P/60Hz 1080P/60Hz NC
1080P/60Hz NC 1080P/60Hz
NC 4K/30Hz 4K/30Hz
Triple Ports Connected 1080p/60Hz 1080p/60Hz 1080p/60Hz

Under MST Mode*
  VGA HDMI DP
Single Port Connected 1080p/60Hz NC NC
NC 4K/30Hz NC
NC NC 4K/30Hz
Dual Ports Connected 1080P/60Hz 1080P/60Hz NC
1080P/60Hz NC 1080P/60Hz
NC 1080P/60Hz 1080P/60Hz
Triple Ports Connected 720p/60Hz 720p/60Hz 720p/60Hz

Note: 4K mentioned above stands for 4096*2160, 3840*2160; 1080P stands for 1920*1080; 720P stands for 1280*720
Support HDMI max 4K/30Hz Support VGA max 1920x1200/60Hz Support DP max 4K/30Hz
• The resolution may degrade to lower version when 2 or 3 videos are connected due to bandwidth limitation
• Support three videos to display simultaneously with the same picture under SST mode
• Support three different videos to display simultaneously under MST mode
* Apple supports only SST mode • Important note for Apple M1-chip based computers: Please note that for Mac Systems based on M1 Architecture the Multi Display function of Thunderbolt 3 is not enabled. This product will not work with the M1 Architecture.
• Triple Display support
• one port IEEE 802.3 Ethernet support for up to 1000BASE-TX
• SD- and Micro SD Slots work simultaneously
• Audio port(Stereo), supports both micro- and head-phone
• Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD PowerSupply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.
OS Support:
Microsoft Windows® 10
Mac OSX® Supports SST mode Only
In the box:
• CSV-1564 Docking Station
• PowerSupply (CAC-1902) Input:100-110/240VAC, Output: up to 60W, Various Power plugs depending on Country (Specify on order)
• 2x USB TypeC cable, 1x connection to Host(27cm / 0.886ft, 1x RED cable USB type C for charging to PowerSupply 1 m / 3.28 ft
• Quick Install Guide
Available Interfaces:
• 3x USB 3.2 Gen1 Type C Female (1-for Data, 1 for PD charging, 1 for connecting to Host)
• 3x USB 3.0 Type A female
• 2x USB 2.0 Type A female
• 1x HDMI™ female
• 1x DisplayPort™ female
• 1x VGA female
• 1x RJ45 jack
• 1x SD slot
• 1x Micro SD slot
• 1x 3.5mm Stereo jack(Headphone/Mic)
Other info:

• Box size: 36.7 x 7.9 x 10.9 cm6

• Box size: 14.45 x 3.1 x 4.29 inch
• Device size: 35 x 7.5 x 2 cm
• Device size: 13.78 x 2.95 x 0.79 inch
• Device Weight: depending on power plug ≈ 250 gr. / 8.82oz.
• USB C cable Weight: 35 gr. / 1.2 oz.
• Box Weight: 239gr. / 8.43 oz.
• Powersupply ( CAC-1902 ) weight: depending on power plug ≈ 210 gr. / 7.4 oz.
• Total Weight: depending on power plug ≈ 734 gr./ 25.9 oz.
• Meets ROHS, FCC, and CE EMI requirements

Technology

USB A B C 4
