USB 3.2 Gen1 Type C to DisplayPort 1.2 4K60Hz
CAC-1507 The Club 3D is a USB Type C to DisplayPort™ Adapter and is the easiest solution for connecting your USB 3.2 Gen1 Type C source device featuring DisplayPort Alternate Mode to a DisplayPort™ 1.2 enabled (Ultra) High Definition Monitor, Television or Projector. The DisplayPort™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks.
Supports up to 4K UHD Resolution at 60Hz and AMD FreeSync.
The USB 3.2 Gen1 Type-C to DisplayPort™ 1.2 adapter supports (U)HD resolutions up to 4K UHD @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.2 Gen1 Type-C enabled device on a (Ultra) High Resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video. Does not support Dual Mode DisplayPort™ (DP++)
Compatible with all Operating Systems
The USB 3.2 Gen1 Type-C to DisplayPort™ 1.2 (U)HD Adapter supports all USB 3.2 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
|Product Name: USB 3.2 Gen1 Type C to DisplayPort™ 1.2 4K60Hz UHD Adapter|
|Product Series: Adapter|
|Weight: 56 gr|
|Cable length: 180 mm|
|Item Code: CAC-1507|
|EAN Code: 8719214470432|
|UPC Code: 841615100552|
|• Reversible USB 3.2 Gen1 Type C connector|
|• Compliant to VESA DisplayPort™ Alt Mode Standard|
|• Supports full link training and no link training|
|• Supports (U)HD resolutions up to 3840 x 2160p @ 60Hz|
|• Supports 3D Video formats up to 1080p @ 120Hz|
|• Compatibel with Thunderbolt 3|
|• Powered by USB Port (no external power needed)|
|Supports AMD HD 6xxx, Nvidia® Maxwell and Intel® HD/ Iris™ graphics solutions and newer.|
|Requires DisplayPort™ Alt Mode support from the source system.|
|USB 3.2 Gen1 Type C Male|
|DisplayPort™ 1.2 Female|
|Apple OS X|
|Google Chrome OS|
|In the Box|

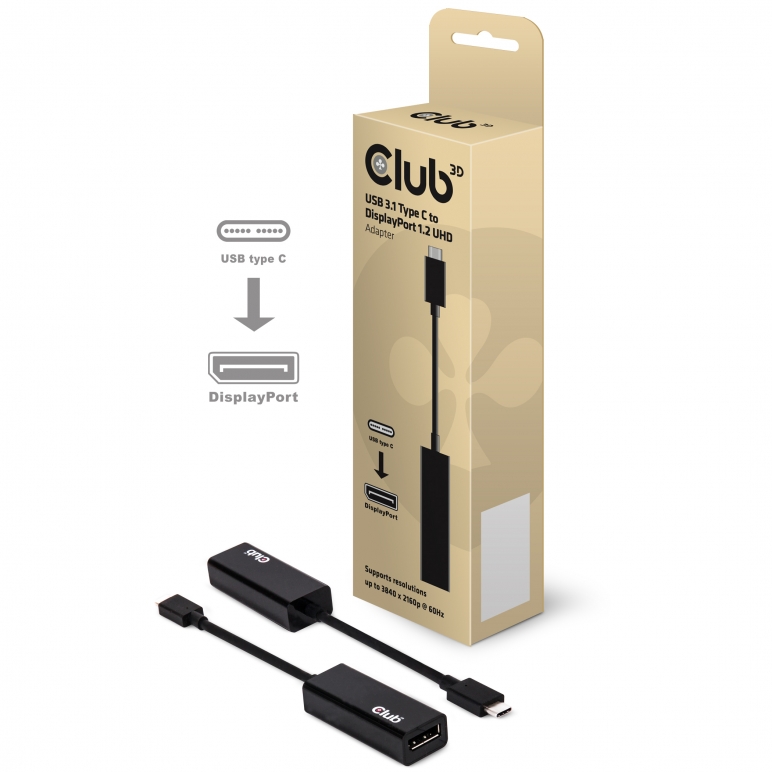

|CAC-1507 USB 3.2 Gen1 Type-C to DisplayPort™ 1.2 4K60Hz UHD Adapter|
|Box size 18.2cm x 6cm x 3.5cm|
