Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter
Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter
Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter
Enlarge

Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter

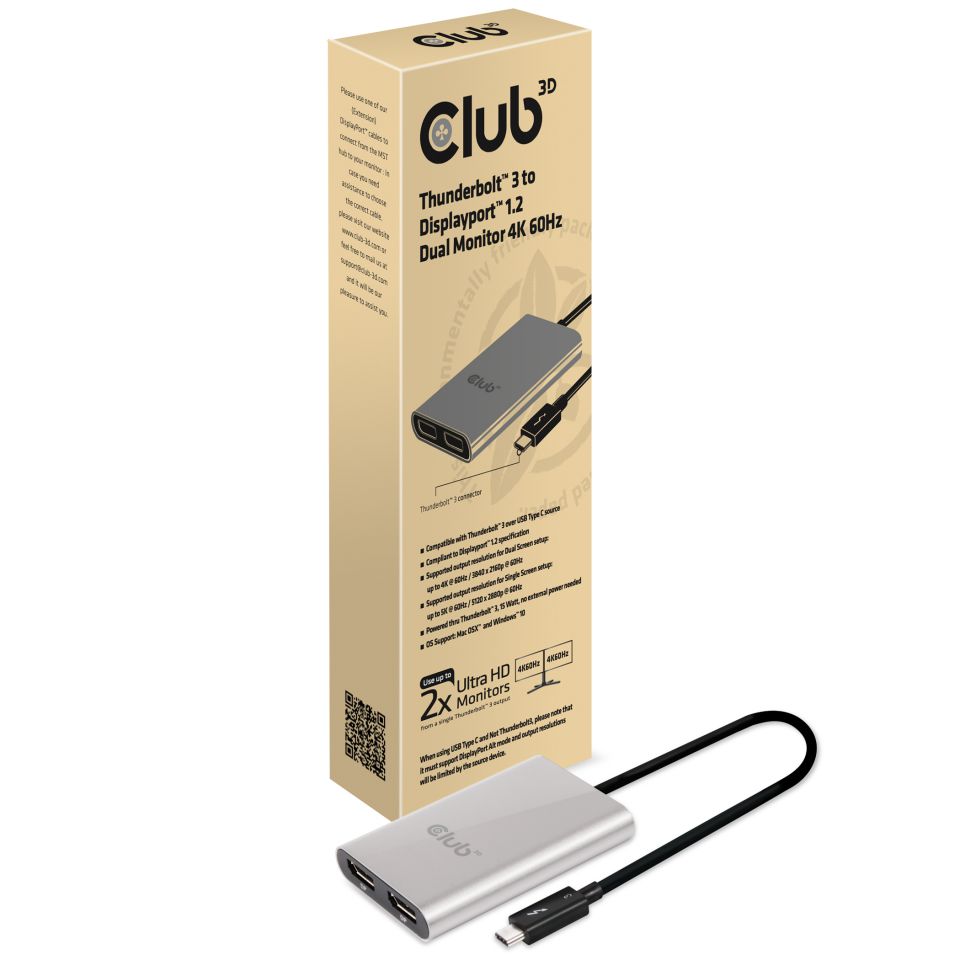

CSV-1577 - The Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter lets users easily connect two Displayport™ 1.2 Screens to any device with a Thunderbolt™ 3 interface. This unique adapter is compatible with both Mac™ OS Sierra and Windows™ 10. The output resolution supported is up to 5K @ 60Hz for Single Screen setup(connected with 2 cables) and 2 x 4K @ 60Hz for Dual Screen Setups. It is fully Plug & Play, so no need for driver installation. This stylish adapter has a beautiful Brushed Aluminum Casing making it strong and light.

It is also very slim, 16 mm, making it easy to carry with you.

Multiply your screen area with your tablet, desktop PC or Ultrabook. With multiple monitors your computer will become more useful and you will become more efficient and accomplish more. With 2 displays delivering 4K performance, you can have four times the screen space compared to 1080p.

Tip: USB Type C with Thunderbolt™ 3 have a lightning symbol. Not all USB Type C have two way data transfer and video signal functions. When converting the DisplayPort™ output to another signal, please use active adapters – please contact us if you require more information. Its important that you update your devices with the latest software to ensure the best experience with this Thunderbolt™ 3 device.

Important note for Apple M1-chip based computers:
Please note that for Mac Systems based on M1 Architecture the Multi Display function of Thunderbolt 3 is not enabled. This product will not work with the M1 Architecture.

Check out the downloads tab for more information

Related products
SenseVision USB Type C MST Charging Dock
SenseVision USB Type C MST Charging Dock
USB Type-C to Ethernet + USB 3.0 + USB Type-C Charging Mini Dock
USB Type-C to Ethernet + USB 3.0 + USB Type-C Charging Mini Dock

Specifications

Product Name:
Thunderbolt™ 3 to Dual Displayport™ 1.2 Adapter
Product Series: Video Splitter
Itemcode: CSV-1577
EAN code: 8719214470722
UPC code: 841615100903
Features
• Compatible with Thunderbolt™ 3 over USB Type C source
• Compliant to Displayport™ 1.2 specification
• Supported output resolution for Dual Screen setup: up to 4096x2160p @ 60Hz
• Supported output resolution for Single Screen setup: up to 5120x2880p @ 60Hz(you need 2 cables connected)
• Powered thru Thunderbolt™ 3, 15Watt, no external power needed
• Featuring Intel Alpine Ridge Controller
OS Support:
Mac OS™ and Windows™
Important note for Apple M1-chip based computers:
Please note that for Mac Systems based on M1 Architecture the Multi Display function of Thunderbolt 3 is not enabled. This product will not work with the M1 Architecture.
