Multi Stream Transport (MST) Hub DisplayPort 1.4 Triple Monitor

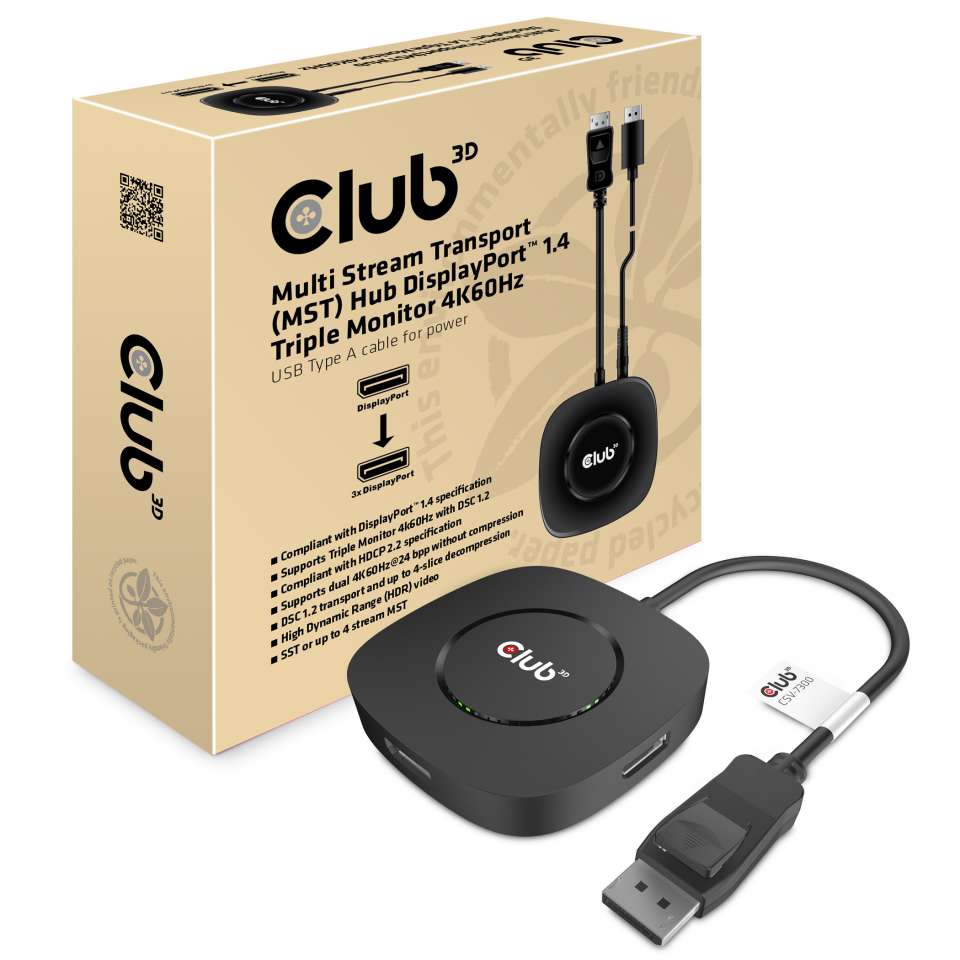

CSV-7300 - The Club 3D Multi Stream Transport (MST) Hub DisplayPort™ 1.4 Triple Monitor is an integrated solution that allows you to enjoy displaying content onto three different monitors/displays simultaneously under MST mode.
The three screens can accommodate displaying different contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards that support all DP Alt mode video signal output, for gaming and commercial applications.
_hub_displayport_1.4_triple_monitor/&media=https://club-3d.com/en/detail/2485/multi_stream_transport_(mst)_hub_displayport_1.4_triple_monitor//productfoto/300x300/2485_1.jpg&description= CSV-7300 - The Club 3D Multi Stream Transport (MST) Hub DisplayPort™ 1.4 Triple Monitor is an integrated solution that allows you to enjoy displaying content onto three different monitors/displays simultaneously under MST mode.<br />
<br />
The three screens can accommodate displaying different contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user’s visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It’s the perfect solution for host devices which feature DP1.2 /1.4 graphic cards that support all DP Alt mode video signal output, for gaming and commercial applications.){kind=link}
Specifications
| Product Name: Multi Stream Transport(MST) Hub DisplayPort™ 1.4 Triple Monitor |
| Product Series: Video Splitters |
| Item code: CSV-7300 |
| EAN code: 8719214471415 |
| UPC code: 841615101597 |
| Features: |
| • Compliant with DisplayPort™1.4 specification |
| • Compliant with HDCP 2.2 specification |
| • Supports Triple Monitor 4K60Hz with DSC 1.2 |
| • Supports dual 4K60Hz@24 bpp without compression |
| • DSC 1.2 transport and up to 4-slice decompression |
| • High Dynamic Range (HDR) video |
| • SST or up to 3 stream MST |
| OS Support: |
| Microsoft Windows® 10 |
| In the box: |
| • CSV-7300, 3 port DisplayPort™ 1.4 MST Hub |
| • 1x USB Type A cable for powering the Hub 1 m / 3.28 ft |
| • Quick Install Guide |
| Available Interfaces: |
| • 1x DisplayPort™ Male for connecting to Host |
| • 3x DisplayPort™ Female for connecting to monitors |
| • 1x DC Power jack(5V / 2.4A) We recommend an external power source which can provide 5V @ 2.4A (12W). |
| Other info: |
| • Box size: 14.5 x 14.5 x 4.5 cm |
| • Box size: 5.7 x 5.7 x 1.77 inch |
| • Device size: 7.9 x 7.9 x 1.7 cm |
| • Device size: 3.11 x 3.11 x 0.67 inch |
| • Cable to Host : 13 cm / 5.12 inch |
| • Device Weight: 68gr / 2.4oz |
| • USB Type A power cable length: 100 cm/ 39.37 inch |
| • USB Type A power cable weight: 24gr / .85oz |
| • LDPE Bag Weight: 5gr/ .17oz |
| • Box Weight: 24gr / .85oz |
| • Total Weight: 121gr / 4.27oz |
| • Meets ROHS, FCC, and CE EMI requirements |
PDF files
- SPECIFICATION SHEET_CSV-7300_EN.pdf
- SPECIFICATION SHEET_CSV-7300_DE.pdf
- SPECIFICATION SHEET_CSV-7300_ES.pdf
- QUICK-INSTALL-GUIDE-DE-EN-CSV-7300.pdf
High Resolution Images
Driver downloads
- No Driver downloads found
