USB Gen2 Type-C to HDMI 8K60Hz or 4K120Hz HDR10+ with DSC1.2 with Power Delivery 3.0 Active Adapter M/F

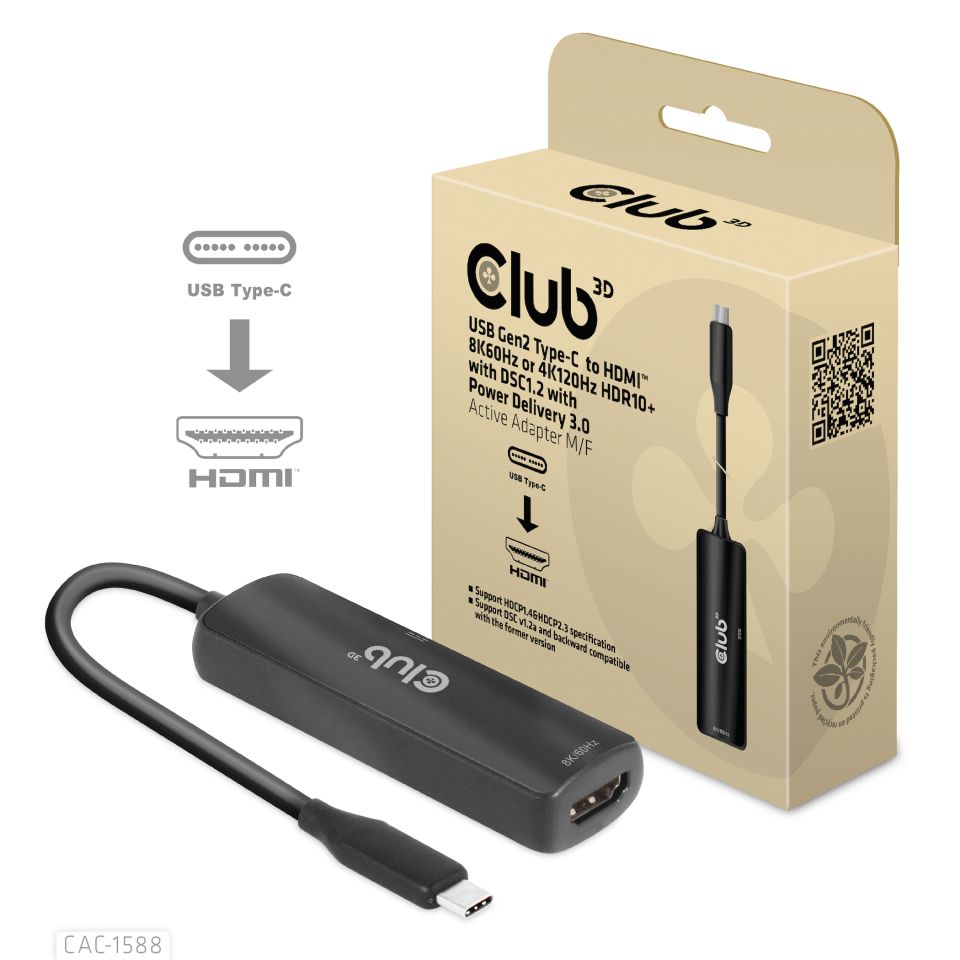

The Club 3D CAC-1588 is a USB Type-C to HDMI™(8K60Hz or 4K120Hz) Adapter with PD Charging. The HDMI™ port allows you to connect a HDMI™ monitor so that you can watch videos on a big screen and the USB-Type-C PD port support PD3.0 with max 100W PD Charging. It can work on all USB Type-C and Thunderbolt™ host that supports DP1.4 Alt mode.
With its DP1.4 Alt Mode DSC video compression technology, this adapter is able to convert DP1.4 Alt Mode video signals to HDMI™, supporting video display resolutions up to 8K60Hz (7680 x 4320)** and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Adapter is bus powered so NO External power needed !
|USB Gen2 Type-C to HDMI™ 8K60Hz or 4K120Hz HDR10+ with DSC1.2 with Power Delivery 3.0 Active Adapter M/F|
|Product Series: Adapter|
|Product Code: CAC-1588|
|EAN code: 8719214472610|
|UPC code: 841615102846|
|• Compliant with VESA DisplayPort™ v1.4 Specification|
|• Compliant with HDMI™ max. 8K60Hz or 4K120Hz Specification|
|• Support HDCP1.4&HDCP2.3 specification|
|• Support DSC v1.2a and backward compatible with the former version|
|• Support Max. resolution/refresh rates up to 8K/60Hz or 4k120Hz|
|• Support Dynamic HDR10+|
|• Support 8/10/12 bit color depth output|
|• Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0|
|• Support max. 100Watt PD charging|
|• Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging out PD Adapter|
|• Support Max. resolution/timing up to 8K60Hz or 4K120Hz|
|This product is SPECIFICALLY designed to work with Graphics Processing Units (GPU’s) which supports DSC 1.2 over an USB Type-C connection : At the time of printing these are the supported GPUs
QUADRO™: RTX8000, RTX6000, RTX5000, RTX4000, RTX3000 MOBILE
NVIDIA® TURING™: TITAN RTX, RTX 2080, RTX 2070, RTX 2060
Intel™ Eleven Based Gen, IceLake, Iris Plus Graphics, UHD Graphics
|Please make absolutely sure that you’re using one of the above mentioned graphical technologies in order to obtain the Superior functionality of our Club 3D CAC- 1588.
This adapter will function with lower specifications GPU’s, be aware performance will be reduced due to the specifications of that GPU !!
Functionality is also dependent on the HDMI™ M/M cable used. In combination with this CAC- 1588 adapter we advise to use HDMI™ Male/Male cable of 28AWG Quality or above, like the Club 3D CAC-1370, CAC-1371 and/or CAC-1372 up to 2m/ 6.56 ft max. !
|• Mac OS|
|In the box:|
|• CAC- 1588 USB Gen2 Type-C to HDMI™ 8K60Hz or 4K120Hz HDR10+ with DSC1.2 with Power Delivery 3.0 Active Adapter M/F|
|• USB Gen2 Type C Male|
|• 1x HDMI™ (Female)|
|• USB Type-C PD3.0 port|
|• Box size: 10 x 10 x 3.5 cm / 3.94 x 3.94 x 1.38"|
|• Device size: 8.5 x 2.5 x 1.4 cm / 3.35 x 0.98 x 0.55"|
|• Cable length approx.: 17 cm / 6.69"|
|• Total length approx.: 25 cm / 9.84"|
|• Connector dimensions:|
|- USB Type C Male 2.9 x 1.2 x 0.7 cm / 1.15 x 0.5 x 0.28"|
|• Device Weight: 40 gr / 1.41 oz|
|• Box Weight: 22 gr / 0.78 oz|
|• LDPE Bag Weight: 5 gr / 0.18 oz|
|• Total Weight: 67 gr / 2.36 oz|
|• Meets ROHS, FCC, and CE EMI requirements|
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!
|Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.|
