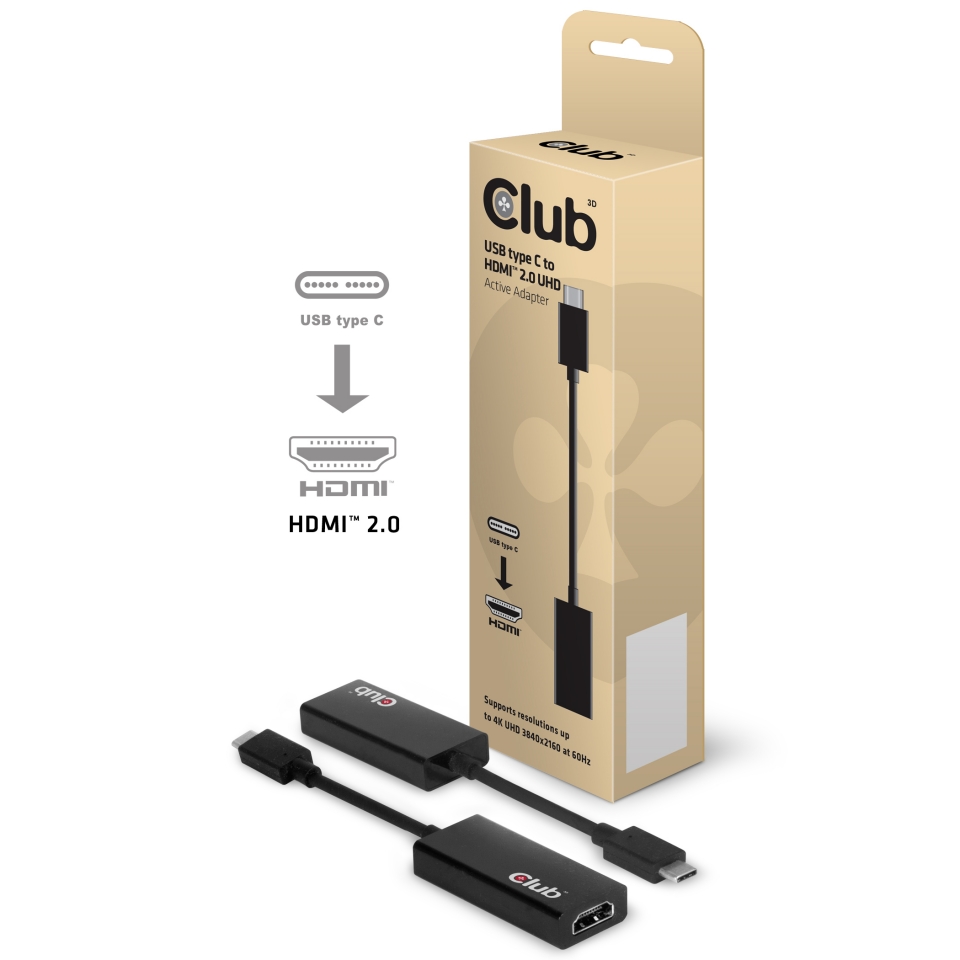

USB 3.1 Type C to HDMI 2.0 UHD Active Adapter
CAC-1504 The Club 3D is an Active HDMI™ signal converter. The USB 3.1 Type-C to HDMI™ 2.0 UHD Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled Monitor, Television or Projector. The HDMI™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with notebooks and Ultrabooks.
Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type-C to HDMI™ 2.0 adapter supports (U)HD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) High- resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.
Compatible with all Operating Systems
The USB 3.1 Type-C to HDMI™ 2.0 UHD Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
HD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) High- resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.<br />
<br />
<b>Compatible with all Operating Systems</b><br />
The USB 3.1 Type-C to HDMI™ 2.0 UHD Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 7, 8.1 and 10 and Google Chrome OS.<br />
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.){kind=link}
Specifications
| Model |
| Product Name: USB Type-C to HDMI™ 2.0 4K60Hz UHD Active Adapter |
| Product Series: Adapter |
| Weight: 56 gr |
| Cable length: 180 mm |
| Item Code: CAC-1504 |
| EAN Code: 8719214470043 |
| UPC Code: 841615100132 |
| Features |
| • USB 3.1 Type C to HDMI™ 2.0 Active Adapter |
| • Compliant to DisplayPort™ Alternate Mode Specification. Effective (video) bandwidth 17.28Gbps |
| • Compliant to HDMI™ Specification 2.0, data rate up to 6Gbps per TMDS channel. • Total throughput 18Gbps |
| • Supports full link training and no link training |
| • Repeater for HDCP 1.3 and HDCP 2.2 |
| • 24-bit color and 4:4:4 color sampling |
| • Internal YCbCr 4:2:2 to YCbCr 4:2:0 conversion capability |
| • Supports UHD resolutions up to 3840 x 2160p @ 60Hz and 1080p 3D |
| • Repeater for HDCP 1.3 and HDCP 2.2 |
| • Compatible with Thunderbolt 3 |
| • Powered by USB Port (no external power needed) |
| Compatibility |
| Supports AMD HD 6xxx, Nvidia® Maxwell and Intel® HD/ Iris™ graphics solutions and newer. |
| Requires DisplayPort™ Alt Mode support from the source system. |
| Connector 1 |
| USB Type-C Male |
| Connector 2 |
| HDMI™ 2.0 Female |
| Operating Systems |
| Microsoft Windows |
| Apple OS X |
| Google Chrome OS |
| In the Box |
| CAC-1504 USB Type-C to HDMI™ 2.0 4K60Hz UHD Active Adapter |
| Other info |
| Box size: 18.2 x 6 x 3.5cm. |
