USB Gen1 Type A Dual Display Docking Station
USB Gen1 Type A Dual Display Docking Station
USB Gen1 Type A Dual Display Docking Station
Enlarge

USB Gen1 Type A Dual Display Docking Station

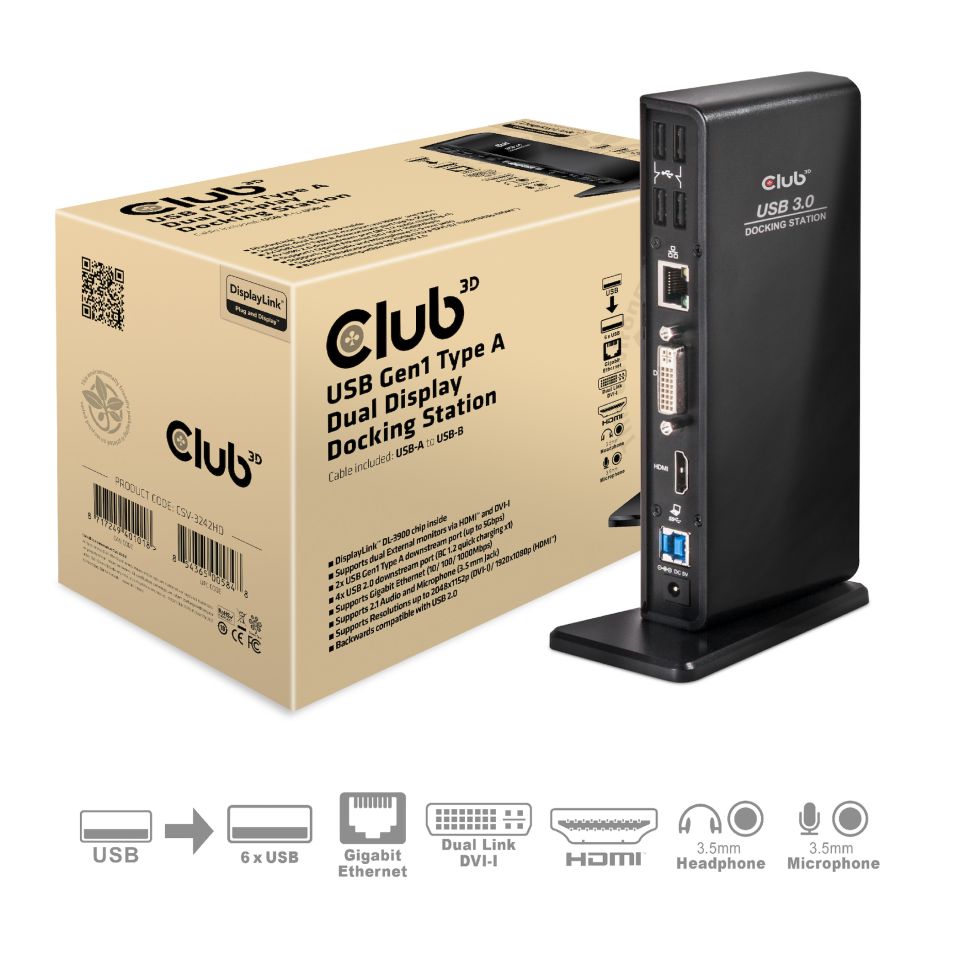

The Club 3D USB Gen1 Type A Dual Display Docking Station is a versatile universal docking station which allows you to expand the outputs of your Laptop or Ultrabook so it can be used as a traditional desktop PC.
Featuring the advanced DisplayLink™ DL-3900 chip inside, the USB Gen1 Dual Display Docking Station enables the use of two external High Definition monitors via the HDMI™ and DVI-I output. It has an RJ 45 Ethernet port for a reliable, fast wired network connection and offers a total of 6 USB ports for your peripherals and storage devices as well as an Audio/Microphone output, all linked to your device via a single USB cable.

Design: The Club 3D USB Gen1 Type A Dual Display Docking Station has a convenient design and detachable stand, allowing it to be placed on your desk in horizontal or vertical position. It's a productivity enhancing tool for any power user working in a (semi) professional environment.

Related products
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station
USB3.2 Gen1 Type A or C Dual Display 4K60Hz Docking Station
Ultra Smart Docking Station
Ultra Smart Docking Station

Specifications

Product Name:
USB Gen1 Type A Dual Display Docking Station
Product Series: Docking
Product Code: CSV-3242HD
EAN code: 8717249401018
UPC code: 854365005848

Features:
• Portable Universal USB Gen1 Type A Dual Display Docking Station
• DisplayLink™ DL-3900 chip inside
• Supports dual External monitors via HDMI™ and DVI-I
• 2x USB Gen1 Type A downstream port (up to 5Gbps)
• 4x USB 2.0 downstream port (BC 1.2 quick charging x1)
• Supports Gigabit Ethernet (10/ 100/ 1000Mbps)
• Supports 2.1 Audio and Microphone (3.5 mm Jack)
• Supports Resolutions up to 2048x1152p (DVI-I)/ 1920x1080p (HDMI™)
• Backwards compatible with USB 2.0
• Compatible with Laptops and Ultrabooks featuring USB Type C
• Club 3D recommends CAA-1521 USB Type C to Type A adapter

OS Support:
• Windows™ 8.1/10
In the box:
• CUSB Gen1 Type A Dual Display Docking Station
• Power Supply 20 Watt ( 5v 4 Amp )
• USB Gen1 cable (USB Type A to Type B, 1 m/3.28 ft )
• Quick install guide

Available Interfaces
Input:
• USB Gen1 Type B male x 1
• DC 5v female x 1
Output:
• 1x HDMI™
• 1x DVI-I
• 4x USB 2.0 Type A
• 2x USB Gen1 Type A
• 1x RJ45 Gigabit Ethernet port
• 3.5mm Audio jack 2.1 ch
• 3.5mm Mic jack

Other info:
• Box size: 21.2 x 13 x 10.8 cm /8.35 x 5.12 x 4.25 "
• Docking Station: 9.5 x 4.9 x 4.4 cm /3.74 x 1.93 x 1.74 "
• USB Type B to USB Type A approx..1 m / 3.28 ft
• USB Cable weight: 44 gr. / 1.55 oz
• Power Supply Weight: 175 gr./ 6.18 oz
• Product Weight: 218 gr./ 7.69 oz
• Base Plate Weight: 97 gr./ 3.42 oz
• Total Product Weight: 315 gr./ 11.11 oz
• Total Packaging Weight: 534 gr./ 18.84 oz

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Technology

USB A B C 4

Developed in the 1990s, USB has become the most successful computing interface yet. The throughput has improved from 1.5Mbps to 10Gbps through standards evolution
1998 USB 1.x Low Speed LS 1.5Mbps Full Speed FS 12Mbps
2000 USB 2.0 High Speed HS 480 Mbps FS/LS
2001 USB on the Go USB 2.0 OTG Master / Slave configurable
2008 USB 3.0 USB 3.1 Gen 1 Super Speed SS 5Gbps / HS/ FS / LS
2013 USB 3.1 Gen 2 Super Speed +  SS+ 10Gbps SS/HS/FS/LS
2014 USB Type C USB 10Gbps DP 8.1Gbps and Power 100 W
