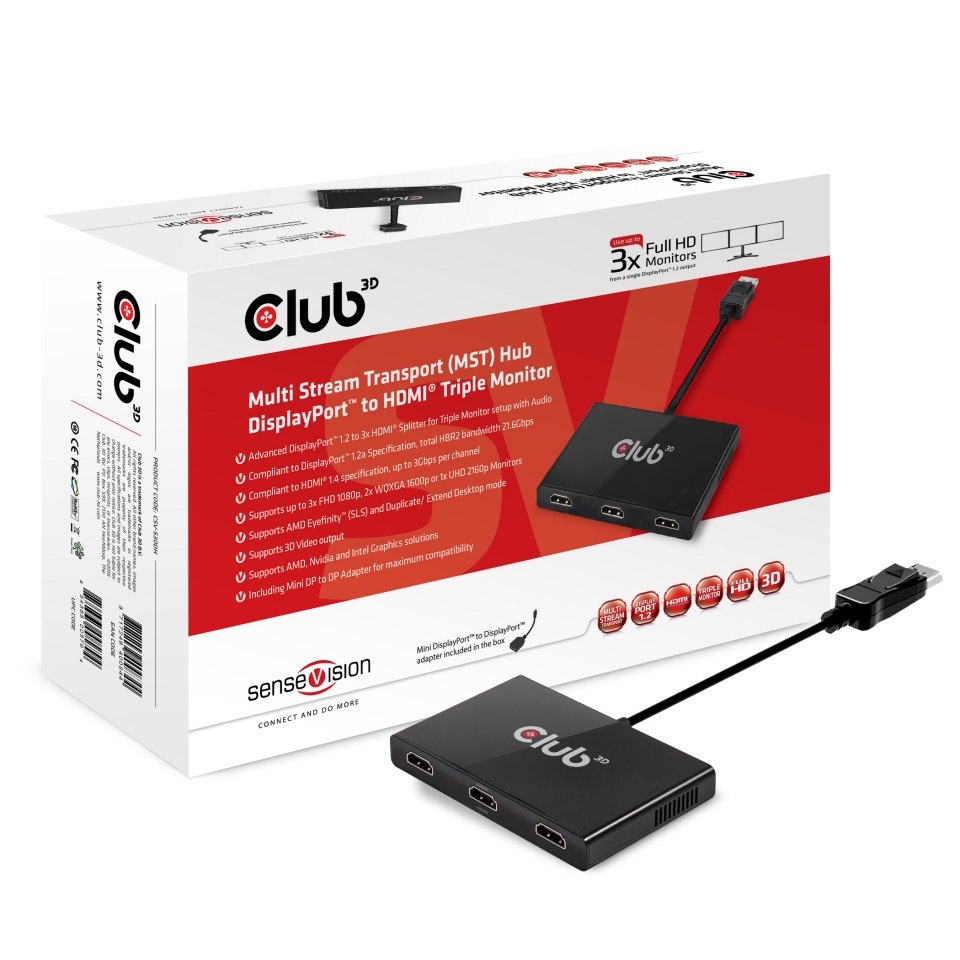

Multi Stream Transport (MST) Hub HDMI® Triple Monitor

CSV-5300H - Display devices have always been a key part of the PC experience. PC Gamers want a more immersive experience and Professionals seek more desktop space to run apps side by side and increase their productivity. The easiest solution is to add multiple Monitors to an existing Laptop or Desktop PC. The SenseVision MST Hub HDM™ Triple Monitor utilizes Multi Stream Transport, a unique DisplayPort™ 1.2 feature, to split a single DP 1.2 signal into three HDMI™ outputs. This enables Three Full HD HDMI™ Displays to be driven independently from one DisplayPort™ 1.2 output on the source device. With multiple Monitors, games become more immersive, workstations become more useful and you become more productive.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.

AMD Eyefinity™
Enjoy the ultimate immersive gaming experience. AMD Radeon™ graphics cards can support up to 6 displays by using two MST hubs* showing each monitor independently or using the Single Large Surface (SLS) mode.

Give your device more Displays
Get even more from your Microsoft Surface Pro tablet or Intel NUC with its powerful (mini) DisplayPort™ output. These platforms feature powerful Intel CPU's with integrated Intel HD graphics and are capable of driving Multiple High Resolution external displays

Increased Productivity
According to a study done by Jon Peddie Research, a majority of (semi) professional power uses can benefit significantly from using Multiple Monitors instead of one. Productivity estimations average to 42% improvement. Primary applications users expect to benefit from Multiple Displays are: content creation, general office use, gaming and CAD. The MST Hub is an affordable and easy alternative to more traditional Multi Monitor Graphics solutions.

Compatible with DisplayPort™ 1.2 and Mini DisplayPort™ 1.2 devices
Notebooks, Ultrabooks and Desktop PCs are getting smaller yet more powerful with every generation. Only (Mini)DisplayPort™ provides the Functionality and bandwidth to power Multiple High Resolution Monitors from a single output. Included with the MST Hub is a Mini DP to DP adapter for maximum compatibility with mobile and desktop based platforms featuring AMD, Nvidia and Intel Graphics Solutions.

Check out the downloads tab below for more information

Specifications

Model
Product Name: Multi Stream Transport (MST) Hub DP1.2 to HDMI Triple Monitor
Product Series: SenseVision
Item Code: CSV-5300H
EAN Code: 8717249400844
UPC code: 854365005794

Interface
DisplayPort 1.2a to Hub HDMI 1-3

Voltage
Input: 5V+/- 10%
Output: 3.3V +/- 10%

Output Configuration
HDMI 1.4 x 3

In the package
Club 3D Multi Stream Transport (MST) Hub DP1.2 to HDMI¢ Triple Monitor
Instruction manual
Power Supply unit
Mini-Displayport to Displayport Adapter (CAC-1110)

Features:
• Compliant with: DisplayPort v1.2a, DisplayPort v1.1a, VESA DDM Standard, HDMI 1.4 Specification, HDCP 1.3 Content protection
• Supports main link rates of 5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR) from source
• Supports three HDMI 1.4 ports
• Supported output resolutions:
up to 2560X1600p @ 60Hz for Dual Monitors and
up to 1920x1080p @ 60Hz for Three Monitors.
• Supports Advanced Wide Eye SerDes technology enables high Jitter performance
• Works with AMD, Nvidia and Intel HD Graphics solutions. Functionality may vary per GPU and OS
• GPU is required to support DisplayPort 1.2 with MST + HBR2 for independent display output
• Including Mini DisplayPort to DisplayPort 1.2 adapter for max compatibility

Note: Some Notebooks/Tablets/MiniPC's have Integrated Graphics Chips which do not support more than 3 screens in total. Please consult with your device specifications for further information.

Works with:
Microsoft Windows 10, 8.1, 7
