USB 3.2 Gen1 Type A to HDMI™ Dual Monitor 4K60Hz
USB 3.2 Gen1 Type A to HDMI™ Dual Monitor 4K60Hz
USB 3.2 Gen1 Type A to HDMI™ Dual Monitor 4K60Hz
Enlarge

USB 3.2 Gen1 Type A to HDMI™ Dual Monitor 4K60Hz

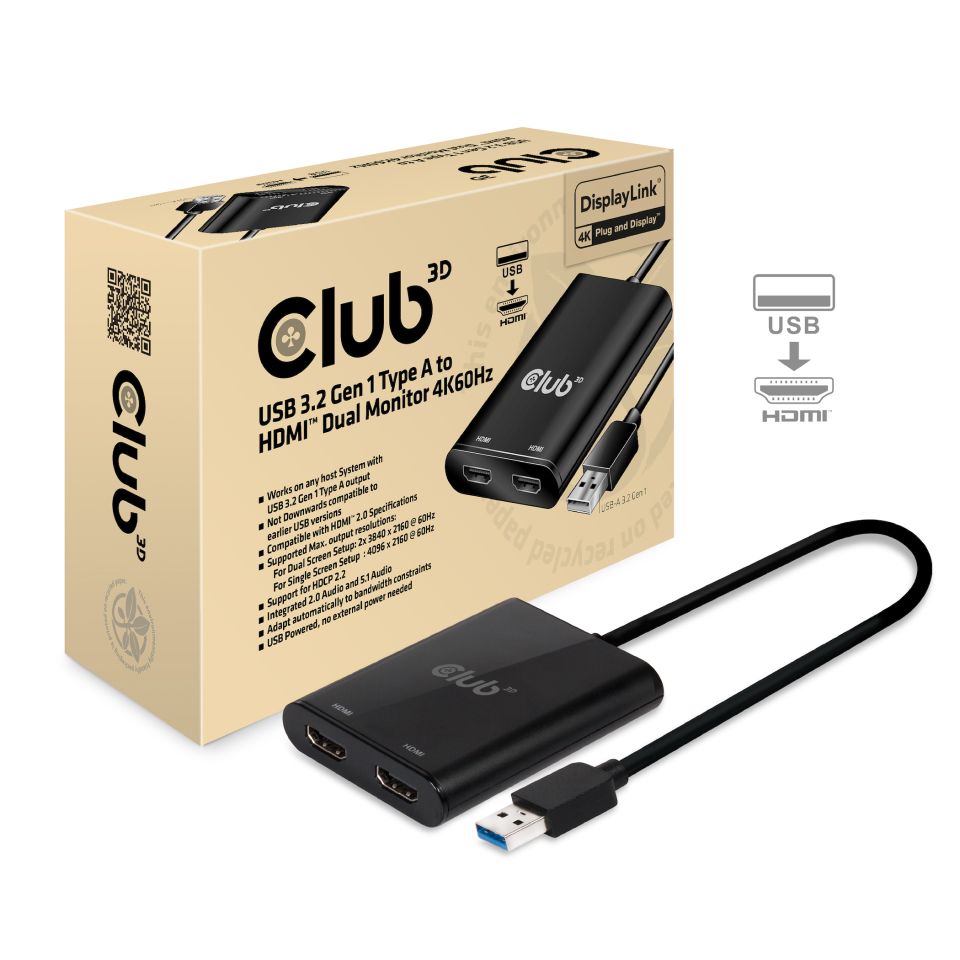

The Club3D CSV-1474 USB 3.2 Gen1 Type A to HDMI™ Dual Monitor 4K60Hz product allows you to connect 2 Screens at 4K60Hz to any host system with a free USB3.2 Gen1 Type A port. Featuring the next generation DisplayLink DL6950 SOC, your existing Notebook/PC- System/Mac/Tablet, is ready for the future.

HDMI™ 2.0
The Bandwidth for HDMI™ 2.0 was increased to 6Gbps per lane bringing the total bandwidth of the 3 integrated lanes 18Gbps. HDMI™ 2.0 is also referred to as HDMI UHD, meaning it supports Ultra High Resolutions of up to 3840x2160p at 60Hz. HDMI™ 2.0 is downwards compatible to earlier versions however that will influence the max supported resolutions.

Please use one of our Extension/Adapter cables to connect to your devices:
In case you need assistance to choose the correct cable, please visit our
website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.

Check out the downloads tab below for more information

Related products
Multi Stream Transport (MST) Hub HDMI® Triple Monitor
Multi Stream Transport (MST) Hub HDMI® Triple Monitor
SenseVision USB Type C MST Charging Dock
SenseVision USB Type C MST Charging Dock

Specifications

Model
Product Name: Club 3D USB3.2 Gen1 Type A to HDMI™ 2.0 Dual Monitor 4K 60Hz
Product Series: Video Splitter
Item Code: CSV-1474
EAN Code: 8719214470739
UPC code: 841615100910
Input
1x USB A Male
Output
2 x HDMI™ 2.0 Female
Features:
• Works on any host System with USB 3.2 Gen1 Type A output
• Not Downwards compatible to earlier USB versions
• Compatible with HDMI™ 2.0 Specifications
• Supported Max. output resolutions :
- For Dual Screen Setup : 2x 3840 x 2160 @ 60Hz
- For Single Screen Setup : 4096 x 2160 @ 60Hz
• Support for HDCP 2.2
• Integrated 2.0 Audio and 5.1 Audio
• Adapt automatically to bandwidth constraints
• USB Powered, no external power needed
In the box:
USB A to HDMI™ 2.0 Dual Monitor 4K 60Hz
Operating System Support:
All
Please contact us at [email protected] if you require more information.
Other Info
• Box size: 13 x 9 x 4.5 cm / 5.2 x 3.6 x 1.8 inch
• Adapter Weight: 75 gr / 2.7 oz
• Total Cable length: 30 cm / 11.8 inch
• Adapter Size : 8 x 6 x 1.6 cm / 3.2 x 2.4 x 0.7 inch
• Connector dimensions:
- USB Type A Male: 4 x 0.7 x 1.5 cm / 1.57 x 0.28 x 0.6 inch
• Box Weight 30 gr / 1 oz
• Total Weight: 105 gr / 3.7 oz
