USB Type A and C Dual Power Charger up to 60W
USB Type A and C Dual Power Charger up to 60W
USB Type A and C Dual Power Charger up to 60W
Enlarge

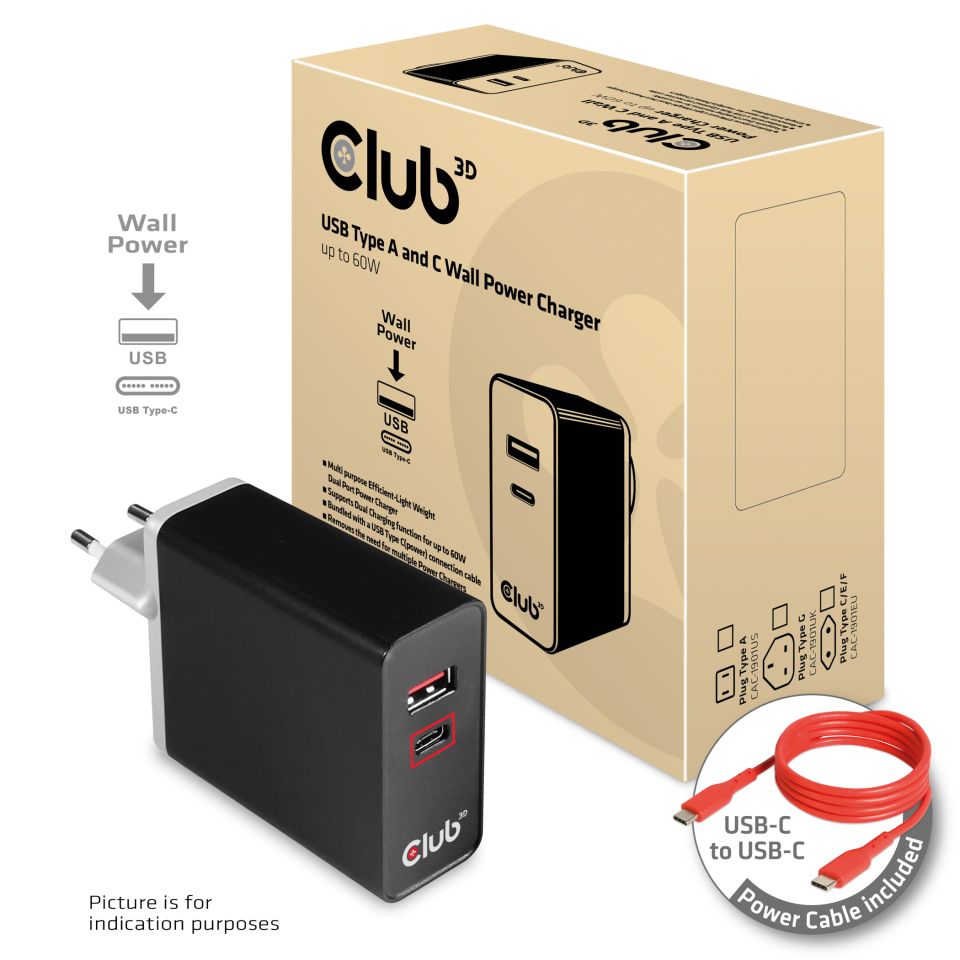

USB Type A and C Dual Power Charger up to 60W

CAC-1902 - The Club3D Dual Wall Power Charger for up to 60 Watt, with dual USB Type A and C connector is designed for users who need to charge their PC/NoteBook/Tablet/Mobile phone as well as their docking station. It has an integrated AC connector for direct use into a wall socket.

The Power Charger is light weight without compromising on Quality and safety. By adopting PowerDelivery charging technology, the charging function through both USB Type A and Type C interface, you can charge any USB C powered device via the bundled USB C cable.

Charging
By adopting PD Charging technology and charging function through both USB Type A and/or C interfaces the Club3D Power Charger offers unique functionality. The USB Type-C connector is compliant with PD2.0 charger and Quick Charger 3.0 technology (available only when using USB C alone) It will charge your device up to 60W when used alone and 45W in combination with 12W of the USB A.

Related products
USB TYPE C POWER CHARGER UP TO 27W
USB TYPE C POWER CHARGER UP TO 27W
USB Type A and C Power Charger, 5 ports up to 111W
USB Type A and C Power Charger, 5 ports up to 111W

Specifications

Product Name: USB Type A and C Wall Power Charger up to 60W
Product Series: Power Charger
Itemcode: CAC-1902
EAN code: 8719214471347
UPC code: 841615101535
Features:
• Multi purpose Efficient-Light Weight Dual Port Power Charger
• Supports Dual Charging function for up to 60W
• Bundled with a USB Type C(power) connection cable
• Removes the need for multiple Power Chargers
• Simple installation
• Integrated mains connector (country specific version)
• USB Type A port x1 output 5V /2.4A = 12W max
• USB Type C port x1 Support PD Charging
When charge in combination with USB A output is 5V-9V-12V-15V/3A, 20V/2.25A up to 45W
When charged USB C alone output is 5V-9V-12V-15V-20V/ 3A to 60W - supports PD 2.0 and QuickCharging 3.0
• Overload, Over Current, Over Temperature and Short Circuit Protection
• Auto Recovery from Fault condition
OS Support: All
In the box:
• CAC-1902 Power Charger with integrated mains connector and Dual
USB Type A and C connector
• USB Type cable for connection between Host system and Power Charger
Input:
• AC power plug
Output:
• USB Type C Male
• USB Type A Male
Other info:
• Box size: 11 x 11 x 5.5 cm
• Box size: 4.3 x 4.3 x 2.22 inch
• Device size: 11,7 x 3 x 6 cm
• Device size: 4,6 x 1,2 x 2.36 inch
• Device Weight: depending on power plug ≈ 245 gr. / 8,64 oz.
• USB C cable Weight: 35 gr. / 1,2 oz.
• Box Weight: 40 gr. / 1.41 oz.
• Total Weight:depending on power plug ≈ 320 gr./ 11,29 oz.
• Meets ROHS, FCC, and CE EMI requirements
