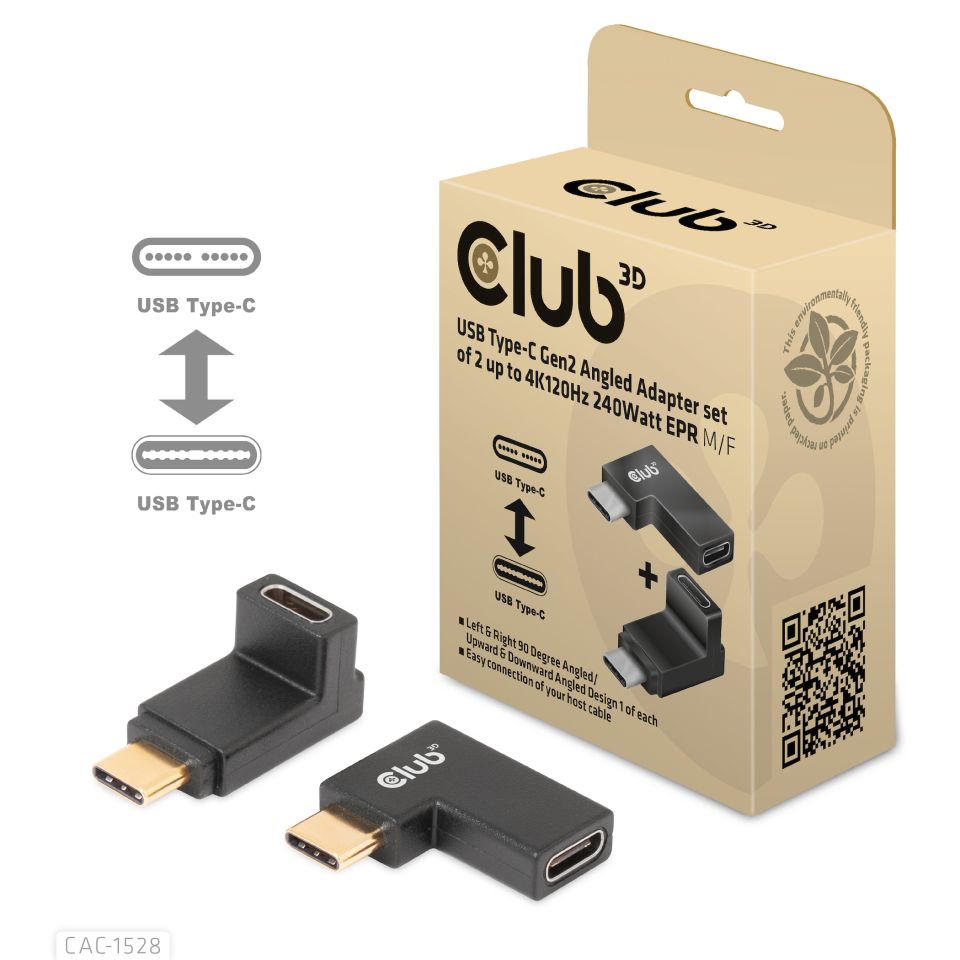

USB Type-C Gen2 Angled Adapter set of 2 up to 4K120Hz M/F

The Club 3D CAC-1528 USB Type-C Gen2 Angled Adapter set of 2 up to 4K120Hz M/F is a versatile set of angled connector adapters providing cable management solutions. With either- or both- conector adapters you can avoid blocking other ports on your host device. Also for displays with a USB Type-C input this can be an easy fix for not blocking other ports and/or bending cables. This set contains 1 of each adapters and are universal in their usage, Data, Video and Power Delivery up to 100W(20V/5A). The adapters are verified with Club 3D products to support up to 4K120Hz. Supports USB Gen2 up to 10Gbps of data speed.

Related products
USB4 Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M-M 0.8m - 2.62ft
USB4 Type-C Gen3x2 Bi-Directional Cable 40Gbps 8K60Hz 100W PowerDelivery M-M 0.8m - 2.62ft
USB Type-C, Y charging cable to 2x USB Type-C max. 100W, 1.83m/6ft M/M
USB Type-C, Y charging cable to 2x USB Type-C max. 100W, 1.83m/6ft M/M
USB Gen2 Type-C to Type-A Cable 10Gbps M/F 5m/16.4ft
USB Gen2 Type-C to Type-A Cable 10Gbps M/F 5m/16.4ft

Specifications

Product Name:
USB Type-C Gen2 Angled Adapter set of 2 up to 4K120Hz M/F
Product Series: Adapter
Product Code: CAC-1528
EAN code: 8719214472146
UPC code: 841615102372

Features:

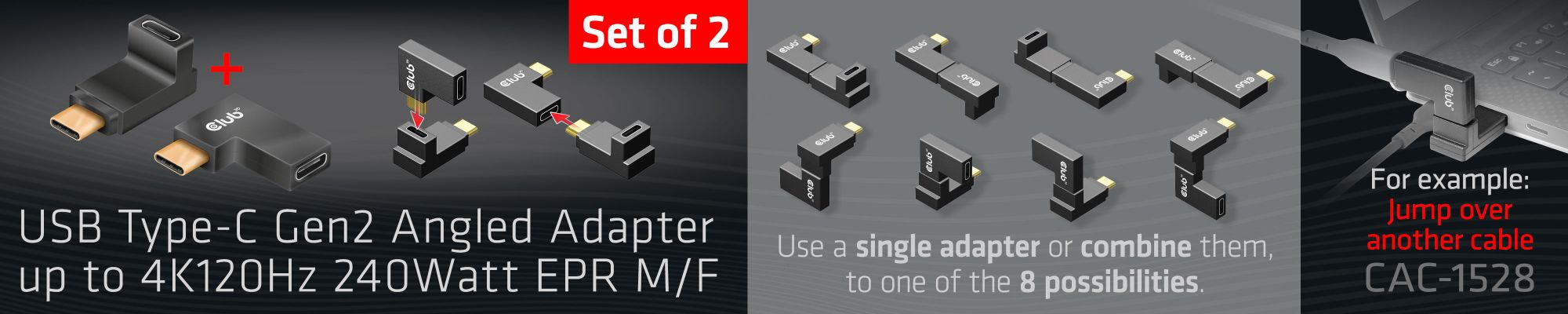

• Left & Right 90 Degree Angled/ Upward & Downward Angled Design 1 of each
• Easy connection of your host cable
• Doesn't block your other ports
• Supports up to 4K120Hz with 2 adapters(with Club3D products)
• Minimal signal loss
• Supports USB Gen2(10Gbps)
• High speed data sync with 100W(20V/5A)Power Delivery charging

Applications:
• Cable Management

Supported resolutions:
• up to 4K120Hz(with Club3D products)

OS Support:
• All

In the box:
• CAC-1528 USB Type-C Gen2 Angled Adapter set of 2 up to 4K120Hz M/F

Available Interfaces
Input:
• USB Type-C Male
Output:
• USB Type-C Female

Other info:
• Box size: 6 x 7 3.5 cm / 2.36 x 2.76 x 1.38"
• USB Type-C Adapter dimensions: see images on our website,
scan the QR-code for quick access or visit: www.club-3d.com
• Device Weight: 2x6 gr= 12 gr / 2x0.21= 0.42 oz
• Box Weight: 34 gr / 1.2 oz
• LDPE Bag Weight: 5 gr / 0.17 oz
• Total Weight: 51 gr / 1.8 oz
• Meets ROHS, FCC, and CE EMI requirements
