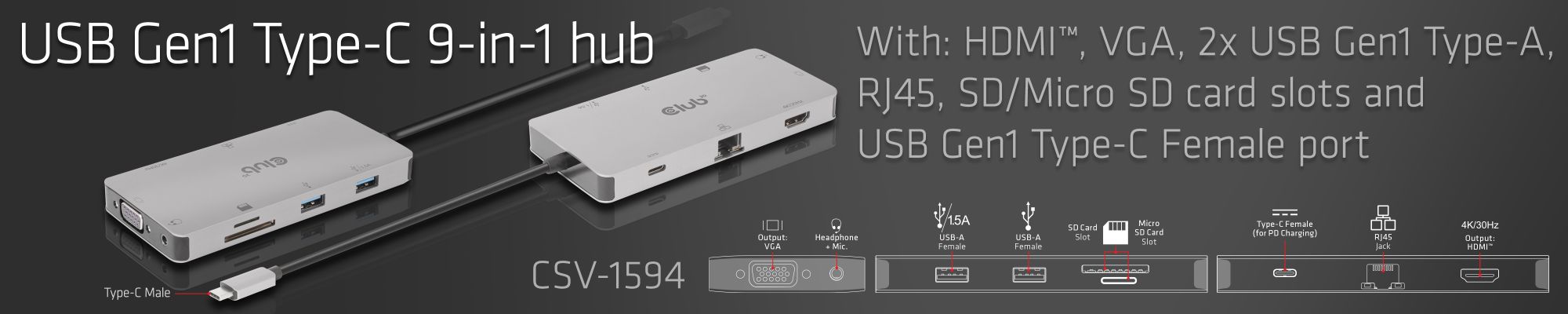

USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
Enlarge

USB Gen1 Type-C 9-in-1 hub with HDMI, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port

The Club 3D CSV-1594 USB Gen1 Type-C 9-in-1 hub with HDMI™, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple  USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.2 Alt mode supported  USB Gen1 Type-C hosts.

Related products
High Speed HDMI 1.4 HD Extension Cable M/F 5m/16.40ft
High Speed HDMI 1.4 HD Extension Cable M/F 5m/16.40ft
USB Type-C Gen 2 Active Cable 4K60Hz 10Gbps PD 100W M/M 1 m/ 3.28 ft
USB Type-C Gen 2 Active Cable 4K60Hz 10Gbps PD 100W M/M 1 m/ 3.28 ft

Specifications

Product Name:
USB Gen1 Type-C 9-in-1 hub with HDMI™, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
Product Series: Docking
Product Code: CSV-1594
EAN code: 8719214472177
UPC code: 841615102419

Features:
• Support DP™1.2 Alt mode
• Support HDMI™ max [email protected]
• Support HDCP1.4
• Support VGA max [email protected] output
• Support to output 2 video under SST mode with dual [email protected]
• Max 5Gbps data transmission per USB Gen1 Type-A port
• Support max 7.5W(5V/1.5A) downstream charging, 2 USB Gen1 Type-A share max 1.8A output
• Support Gigabit Ethernet 10M/100M/1000M,RJ45 support to work with Nintendo Switch™ *
• Support SD3.0 UHS-I up to 104MBps data rate, allow 2 card slots to work simultaneously
• Support Phone out and Mic in
• Support voice adjustment function when connected to headset
• Support PD3.0 with max 100W PD charging
*Note Only RJ45 port provides support for the Nintendo Switch™, other ports don't support the Nintendo Switch™ !

Input:
• 1x USB Gen1Type-C Male(Connect to host) Support DP™1.2 Alt mode
Note: To get max bandwidth, the host should support DP™1.2 Alt mode
Output(s):
• 1x HDMI™
Support max [email protected]
Support 8/10 bit color depth output
Support output pixel format RGB/YCbCr4:4:4/YCbCr4:2:2
Support HDCP1.4
• 1x VGA
Support max [email protected] output
Support to output 2 video under SST mode with dual [email protected]
Note: The max resolution of the display determined by the computer and the monitor
• 2x USB Gen1 Type-A
Max 5Gbps data transmission per port
Support max 7.5W(5V/1.5A) downstream charging the other port supports max, 900mA downstream charging.
2 USB Gen1 Type-A ports share max 1.8A output
Support short-circuit, over-current, over-voltage protection
• 1x RJ45
Support Gigabit Ethernet,10M/100M/1000M
Support Wake-On-LAN
Support full duplex flow control
Support to work with Nintendo Switch™
Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data
• 2x SD/Micro SD 3.0
Support SD3.0 UHS-I up to 104MBps data rate
Allow 2 card slots to work simultaneously
• 1x 3.5mm Audio jack
Support Phone out with digital audio max 96KHz/24bit sampling rate
Support Mic in with digital audio max 96KHz/24bit sampling rate
DAC SNR MAX 95 dB
Support CTIA&OMTP auto detection
Support voice adjustment function when connected to headset
• 1x USB Gen1 Type-C Female (for PD Charging)
Support max 100W PD charging
Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging in and out the PD Adapter
15W is dedicated to the functioning of this product, the rest power (max 85W) will be passed to charge for the host

OS Support:
• All

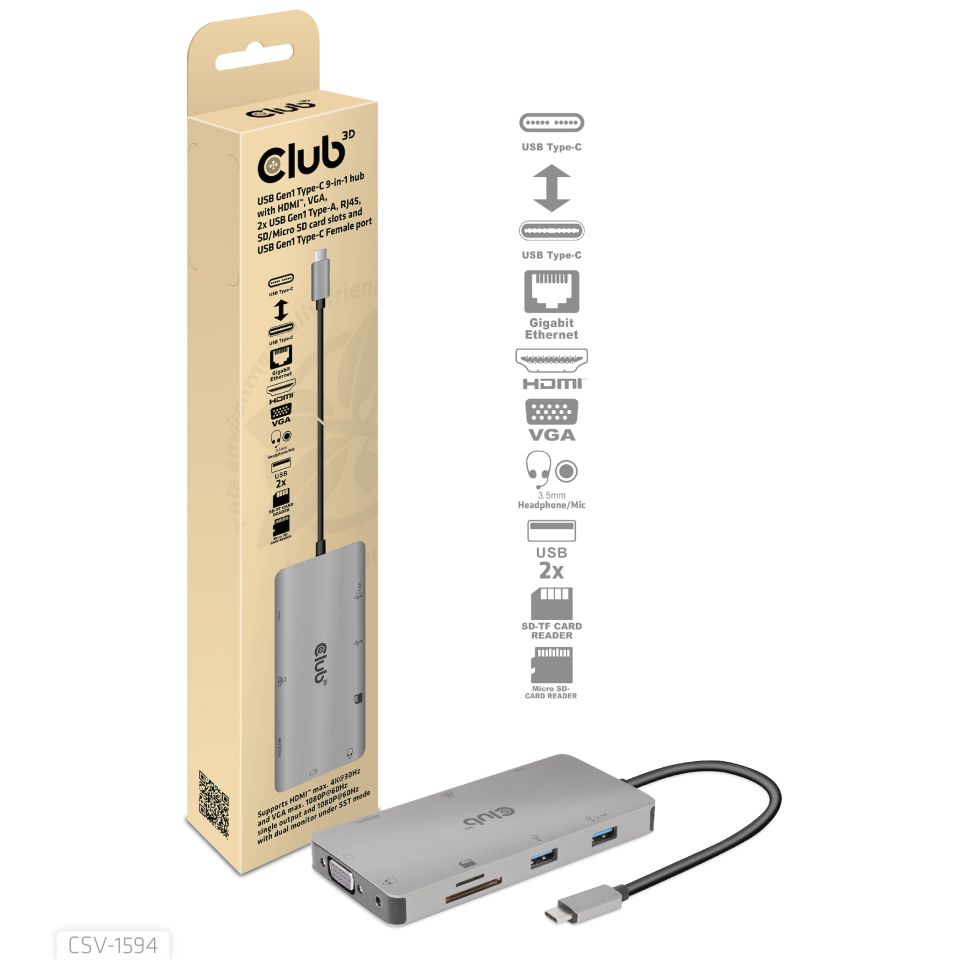

In the box:
• 1x USB Gen1 Type-C 9-in-1 hub with HDMI™, VGA, 2x USB Gen1 Type-A, RJ45, SD/Micro SD card slots and USB Gen1 Type-C Female port
• 1x Quick Install Guide(QIG)

Available Interfaces
Input:
• USB Gen1 Type-C Male
(Connect to host)
Output:
• 1x HDMI™ Female
• 1x VGA Female
• 2x USB Gen1 Type-A Female
• 1x RJ45
• 1x SD/Micro SD 3.0
• 1x 3.5mm jack Audio
• 1x USB Gen1 Type-C Female

Other info:
• Box size: 7 x 32 x 3.5cm / 2.76 x 12.6 x 1.38"
• Cable length approx.: 15 cm / 5.90"
• Total length: ± 31.6 cm / 12.44"
• Hub dimensions: 12.5 x 5.9 x 1.4 cm / 4.92 x 2.32 x 0.55"
• Connector dimensions: 3.4 x 1.2 x x 0.65 cm / 0.86 x 0.47 x 0.26"
• Product Weight: 117 gr / 4.13 oz
• Box Weight: 42 gr / 1.48 oz
• LDPE Bag Weight: 6 gr / 0.21 oz
• Total Weight: 165 gr / 5.82 oz
• Meets ROHS, FCC, and CE EMI requirements

Note:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates !
- ‑Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates!

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
