USB Type-C to MiniDisplayPort Bi-Directional VESA DP40 Certified Cable M/M 2m/6.56ft

Enlarge

USB Type-C to MiniDisplayPort Bi-Directional VESA DP40 Certified Cable M/M 2m/6.56ft

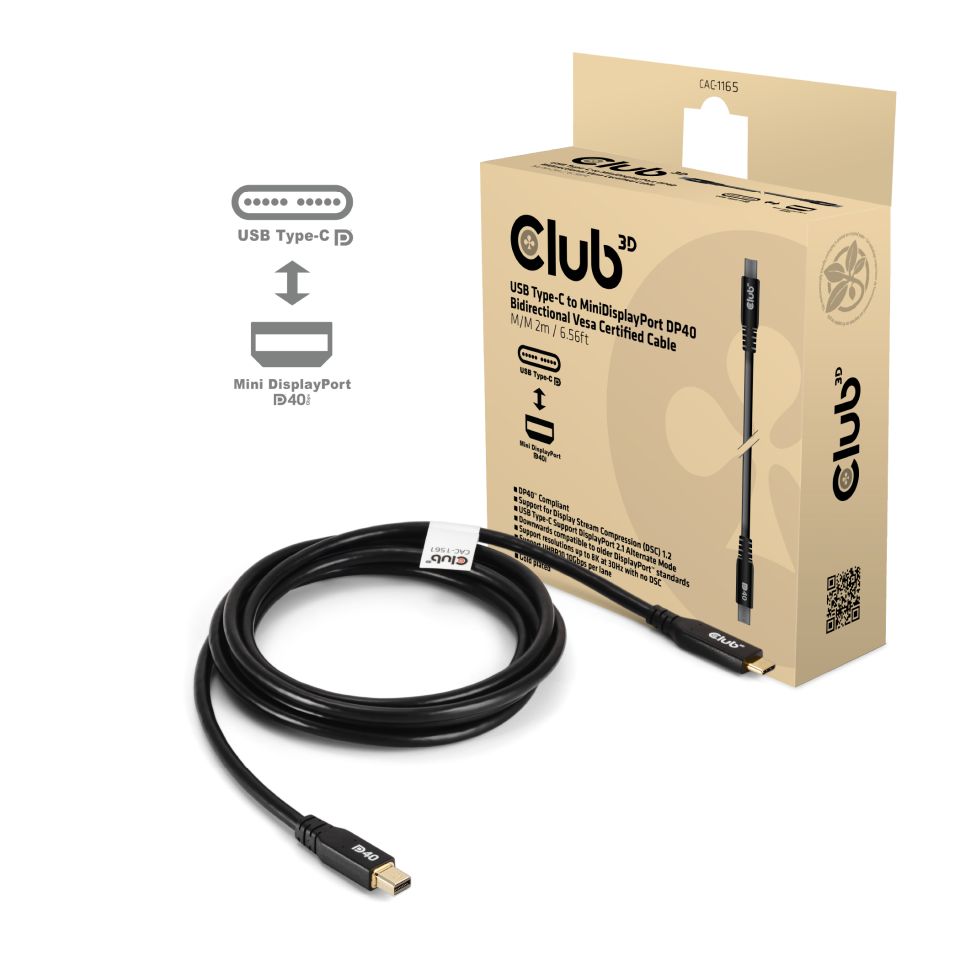

The Club 3D CAC-1561 USB Type-C to MiniDisplayPort™ 2.1 Bi-Directional DP40™ Coaxial Cable, 4K240Hz, 8K30Hz M/M 2m/6.56ft enables the connection of your USB Type-C supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other MiniDisplayPort™ supported device. DisplayPort™ 2.1 UHBR10 up till 40 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32. It features MiniDisplayPort™ connector with NEW contact fingers special designed for these high speeds. The soft UltraFlex jacket protects the cable from bends and deformation damage.

Specifications

Product Name: USB Type-C to MiniDisplayPort DP40 Bidirectional Vesa Certified Cable 2m/6.56ft
Product Series: Cable
Product Code: CAC-1561
EAN-Code: 8719214473112
UPC-Code: 841615103362

Features:
• Fully MiniDisplayPort™ Version 2.1 Compliant, UHBR10 up till 40 Gbps
• DP40™ Compliant
• Support for Display Stream Compression (DSC) 1.2
• Support for Forward Error Correction
• Support for up to 32 Inline Audio Channels
• New DP2.1 spec connector
• USB must support new standard DisplayPort 2.1 (DP40) Alternate Mode
• Downwards compatible to older DisplayPort™ standards
• Support resolutions up to 4K240Hz or 8K30Hz
• Fully Bidirectional
• VESA Certified

Supported resolutions:
• Up to 4K240Hz, 8K30Hz

OS Support:
• All

Available Interfaces:
Input:
• USB Type-C Male
Output:
• MiniDisplayPort™ 2.1 Male

In the box:
• 1X CAC-1561 USB Type-C to MiniDisplayPort DP40 Bidirectional Vesa Certified Cable 2m/ 6.56 ft

Other info:
• Box size: 14.5 x 14.5 x 4.5 cm / 5.74 x 5.71 x 1.77"
• Cable length approx.: 2m / 6.56 ft
• Connector dimensions:
- USB Type-C- 4.7 x 1.2 x 0.6 cm / 1.85 x 0.47 x 0.24"
- MiniDisplayPort 4.3 x 1.9 x 0.8 cm / 1.69 x 0.75 x 0.31"
• Device Weight: 79 gr. / 2.79 oz
• Box Weight: 45 gr./ 1.59 oz
• Bio Degradable Bag size: 12.2 cm / 4.8 "
• Bio Degradable Bag Weight: 5 gr / 0.17 oz
• Total Weight: 129 gr / 4.55 oz
• Meets ROHS, FCC, and CE EMI requirements

Note:

Warning Safe Usage - Product Only to be used at altitude 2000 meters/6562 feet and below.
Club 3D uses environmentally friendly packaging and is printed on recycled paper.
Club 3D uses Bio-Degradable bags according to the EN/DIN 13432.

Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, feel free to mail us at [email protected] and it will be our pleasure to assist you.
