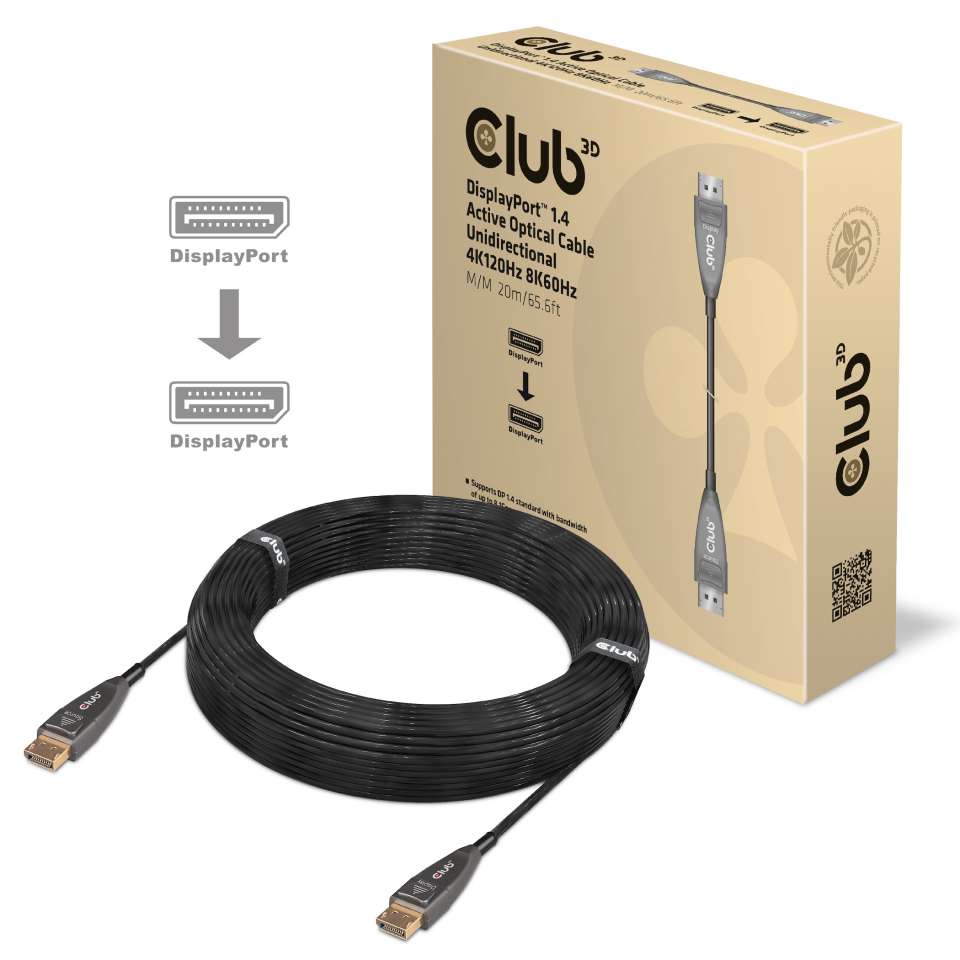

DisplayPort 1.4 Active Optical Cable Unidirectional 4K120Hz 8K60Hz M/M 20m/65.62ft

The Club 3D CAC-1079 is an Active Optical Unidirectional DisplayPort™ Cable that allows support for 8.1Gbps per channel. It supports 4K at 120Hz resolution as well as 8K at 60Hz and HDR formats. This optical fiber cable can be applied to outdoor displays, LED signboards, home cinema displays, conference rooms, medical imaging equipment or security systems to transfer audio and video signals.

Related products
Multi Stream Transport (MST) Hub DisplayPort 1.4 Triple Monitor
Multi Stream Transport (MST) Hub DisplayPort 1.4 Triple Monitor
USB 3.2 Gen 1 Dual Display 4K60Hz Docking Station
USB 3.2 Gen 1 Dual Display 4K60Hz Docking Station

Specifications

Product Name:
DisplayPort™ 1.4 Active Optical Cable Unidirectional 4K120Hz 8K60Hz M/M 20m/65.62ft
Product Series: Cable
Product Code: CAC-1079
EAN code: 8719214471736
UPC code: 841615101962
Features:
This product has many features that enable it to perform in a superior manner. Among those features you will find:
• Support 4K at 120Hz or 8K at 60Hz and HDR formats • Supports HBR3, HDCP1.4/2.2
• Supports DP 1.4 standard with bandwidth of up to 8.1Gps per channel - total bandwidth of 32.4Gbps
• Support length of 20m/65.62ft*
• Maximum Pixel clock frequency is 810 Mhz
• OD 4.8 mm
• Uni-directional - Meaning Source and Display Only
• This cable is Hybrid which means it is downwards compatible to other DisplayPort™ versions
• No external power supply is required
• Plug and Play no driver software required
* A maximum of 100m/328ft - please contact Club 3D
OS Support: All
In the box:
• DisplayPort™ 1.4 Active Optical Cable Uni-directional 4K120Hz 8K60Hz M/M 20m/65.62ft
Available Interfaces
Input:
• DisplayPort™ 1.4
Source Connection Male
Output:
• DisplayPort™ 1.4
Display Connection Male
Other info:
• Box size: 23 x 23 x 5 cm / 9 x 9 x 1.97 inch
• Cable length approx.: 20m/65.62ft
• Connector dimensions: 4.5 x 2.1 x 1.1 cm / 1.77 x 0.83 x 0.43 inch
• Cable Weight: 656 gr / 23.14 oz
• Box Weight: 110 gr / 3.88 oz
• LDPE Bag Weight: 11 gr / 0.39 oz
• Total Weight: 777 gr / 27.4 oz
• Meets ROHS, FCC, and CE EMI requirements
Please use one of our Extension/Adapter cables to connect to your devices: In case you need assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at [email protected] and it will be our pleasure to assist you.
